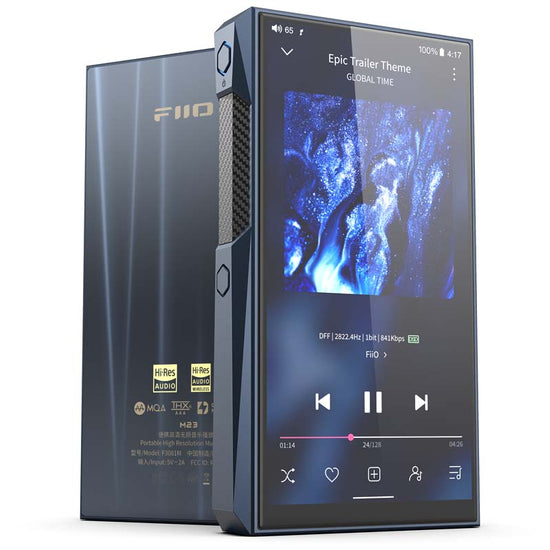

FiiO M23 PORTABLE MUSIC PLAYER

As an iteration model of the M11 Plus series, the M23 not only continues the classic hexagonal honeycomb design and the 18:9 golden ratio of FIIO, but also sees significant upgrades in configuration, performance, and user experience. It aims to fully create a mid-to-high-end portable Android HiFi player that combines both excellent performance and listening experience.

Like the Q15 and K9 AKM, the M23 utilizes the flagship AKM DAC combo —— the AK4191EQ+AK4499EX. It is a new design that totally separates the digital and analog portions and also features the “DWA ROUTING Technology” to further improve the signal-to-noise ratio. These technologies allow for a purer audio background and higher resolution audio – resulting in a relaxed yet natural sound.

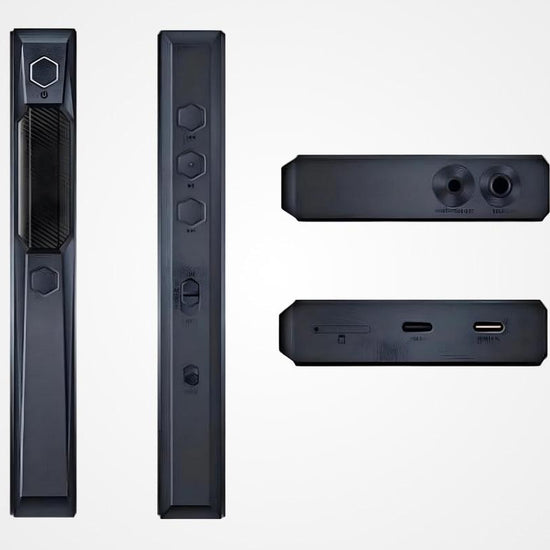

The M23 is FIIO’s first portable player with dual Type-C ports, one of which is dedicated to accepting power only (POWER IN). When this dedicated power Type-C port is connected to fast charging, the Super High Gain Mode can be activated for more gain and more output power. In this mode, the output power can reach up to 1000mW+1000mW per channel, making the M23 better suited for pushing high impedance headphones. While in this mode, the other Type-C port does not consume any power and thus makes it suitable to connect the M23 to a phone for use as a USB DAC.

In addition, the M23 also follows FIIO’s latest patented technology - Desktop mode (D.MODE), with a switch specifically for toggling. When the D.MODE is activated, the M23 is completely powered by an external power source. The built-in battery will neither be charged nor discharged, which ensures the M23 can be used as desktop equipment without fear of damaging the battery.

FIIO, as one of the audio manufacturers with the earliest and most widely adopted THX amp design, has long mastered and polished the THX headphone amplifier architecture. The THX AAA 78 headphone amplifiers as used in the M11 Plus and M11 Pro have been widely praised by audiophiles around the world. After several years of continuing to refine the design, we introduce the THX AAA 78+ amplifier architecture in the M23. It allows for greater power output with high fidelity, resulting in powerful sound reproduced with extreme accuracy.

The M23 employs a dual-mode fast-charging system that utilizes extreme fast-charging + normal fast charging. At a lower battery state of charge, extreme fast-charging is used to safely allow for up to 30W charging speeds. When the battery gets close to a full state of charge, the M23 switches to slightly slower normal fast-charging, which allows for greatly improved charging times while still maintaining battery health.

The specially selected low-resistance fast-charging batteries5500mAh that employ high-temperature resistant material are paired with technologies such as a low resistance MOS protection board to ensure the batteries will last a long time.

FiiO M23 Portable Music Player Specifications :
