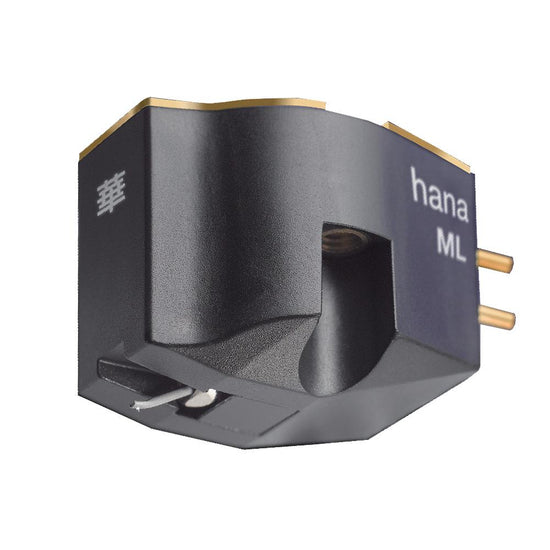

The Hana ML is a highly acclaimed low-output moving coil (MC) phono cartridge produced in Japan by Excel Sound Corporation. Sitting in the middle-to-upper tier of Hana’s lineup (the "M Series"), it is widely regarded by audiophiles as one of the best value-to-performance cartridges.
Key Engineering Features
-
MicroLine Stylus Profile: Designed to closely mirror the shape of a vinyl cutting lathe stylus. It sits deeper in the vinyl groove, maximizing detail retrieval while drastically reducing inner-groove distortion.
- Delrin Body + Brass Cap: The body is injection-molded from Delrin (POM)—a polymer chosen for its acoustic damping properties similar to vinyl. A heavy brass cap adds mass (9.5 g) and constrained-layer damping to eliminate body resonances.
- Cryogenic Treatment: Key components of the electro-magnetic generator (front yoke, center, and rear parts) undergo cold annealing near absolute zero, restructuring metal at the molecular level for a more linear magnetic field.
- Threaded Mounting Inserts: Built directly into the body for easier installation onto tonearms (unlike older models that required nuts and bolts).
| Specification | Details |
| Cartridge Type | Low-Output Moving Coil (MC) |
| Stylus | Nude MicroLine |
| Cantilever | Machined Aluminum |
| Output Voltage | 0.4 mV @ 1 kHz |
| Tracking Force | 2.0 grams (recommended) |
| Cartridge Weight | 9.5 grams |
| Body Material | Delrin (POM) with a Machined Brass Top Plate |
| Coil Wire / Magnets | High-purity copper wire, Alnico magnet |
| Internal Impedance | 8 ohms |
