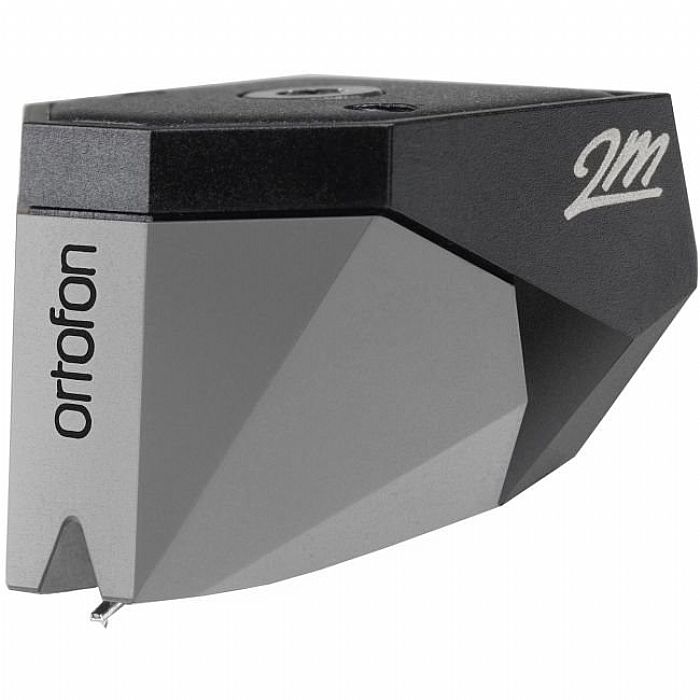

Ortofon 2M 78 (78 rpm)
- Estimated delivery: Dec 27 - Dec 31
-
Free shipping on all orders over $125
The 2M 78 Series - the true MONO from Ortofon!
The 2M Series of cartridges is designed for precise and accurate retrieval of the information in the record groove. Our philosophy is to play the record sound as accurate as possible, without coloring the sound.
The name 2M was selected from several ideas. We wanted a modern name that would be easy to pronounce and remember, and therefore an alphanumerical name was chosen. 2M means MM, which is the abbreviation for moving magnet.
The 2M series of cartridges features Ortofon’s trademark split pole pins, an invention that enables moving magnet cartridges to have a flat frequency response, as with a moving coil cartridge. Split pole pins were invented by Ortofon, and were originally presented in the 500 series and Super OM series.
We have optimized the design for ease of mounting the cartridge, and the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.
Replacement stylus can be found here: Ortofon Stylus 78

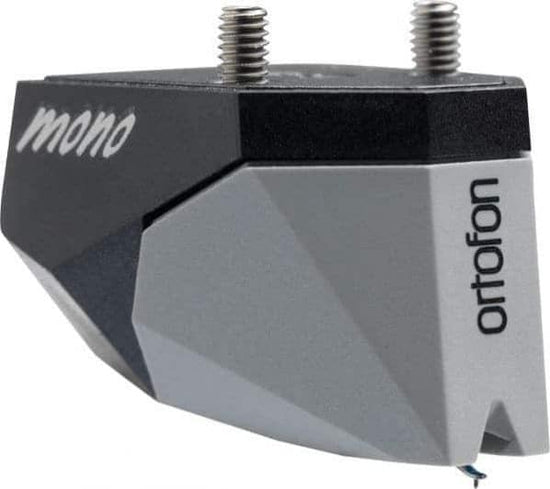

The 2M 78 Verso model is an alternative product for bottom mount tonearms.
Ortofon 2M 78
| Technical data 2M 78 |
|
| Output voltage at 1000 Hz, 5cm/sec. | 4 mV |
| Channel balance at 1 kHz | - |
| Channel separation at 1 kHz | - |
| Channel separation at 15 kHz | - |
| Frequency range at - 3dB | 20-20.000 Hz |
| Frequency response | 20-20.000 Hz + 3 / - 1 dB |
| Tracking ability at 315Hz at recommended tracking force | 70 µm |
| Compliance, dynamic, lateral | 18 µm/mN |
| Stylus type | Spherical |
| Stylus tip radius | R 65 µm |
| Tracking force range | 1,6-2,0g (16-20 mN) |
| Tracking force, recommended | 1,8 g (18 mN) |
| Tracking angle | 20° |
| Internal impedance, DC resistance | 700 Ohm |
| Internal inductance | 300 mH |
| Recommended load resistance | 47 kOhm |
| Recommended load capacitance | 150-300 pF |
| Cartridge colour, body/stylus | Black/Grey |
| Cartridge weight without screws | 7,2 g |
| Replacement stylus unit | 2M 78 |
| Stylus protection guard | 2M 78 |
