Quad 33
- Livraison estimée : Sep 01 - Sep 05
-
Livraison gratuite sur toutes les commandes de plus de 125 $
The QUAD 33 and 303 stand as unmistakable icons in the world of high-fidelity audio—a legacy we carry with immense pride. As enduring favorites from one of the industry's most influential brands, these components remains the gold standard for what audio equipment should be: a perfect harmony of performance, reliability, striking industrial design, and pure musical soul.

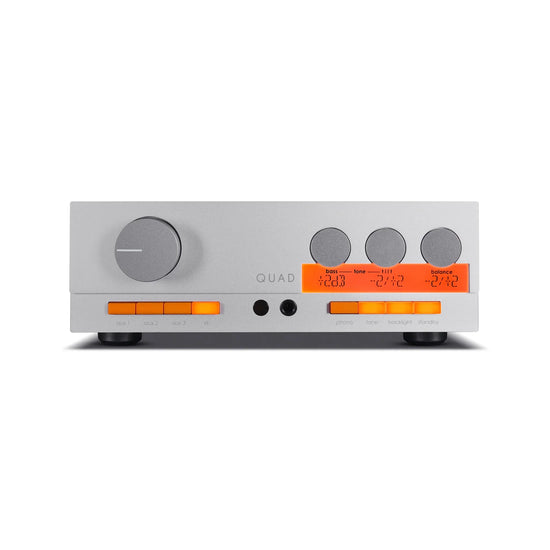

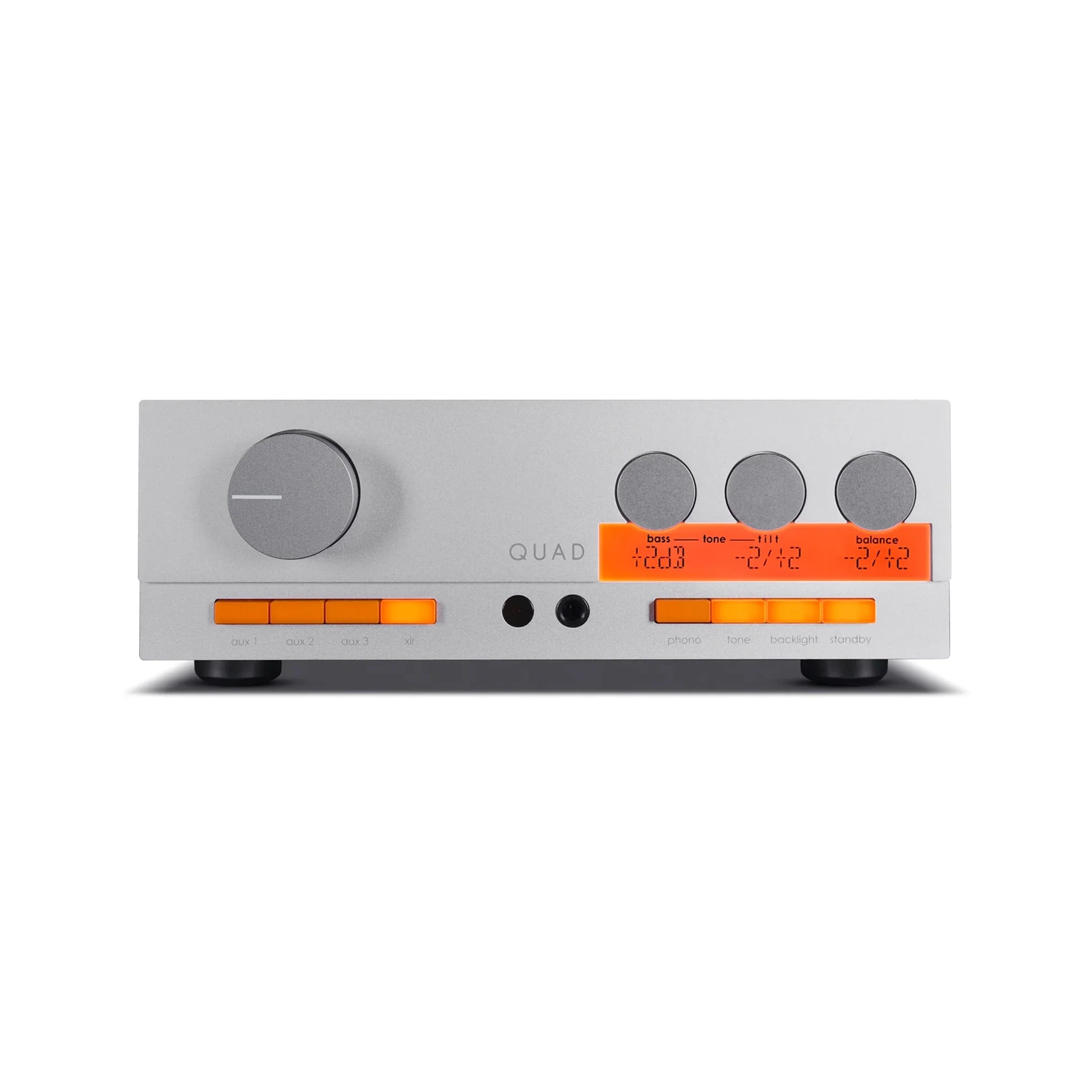

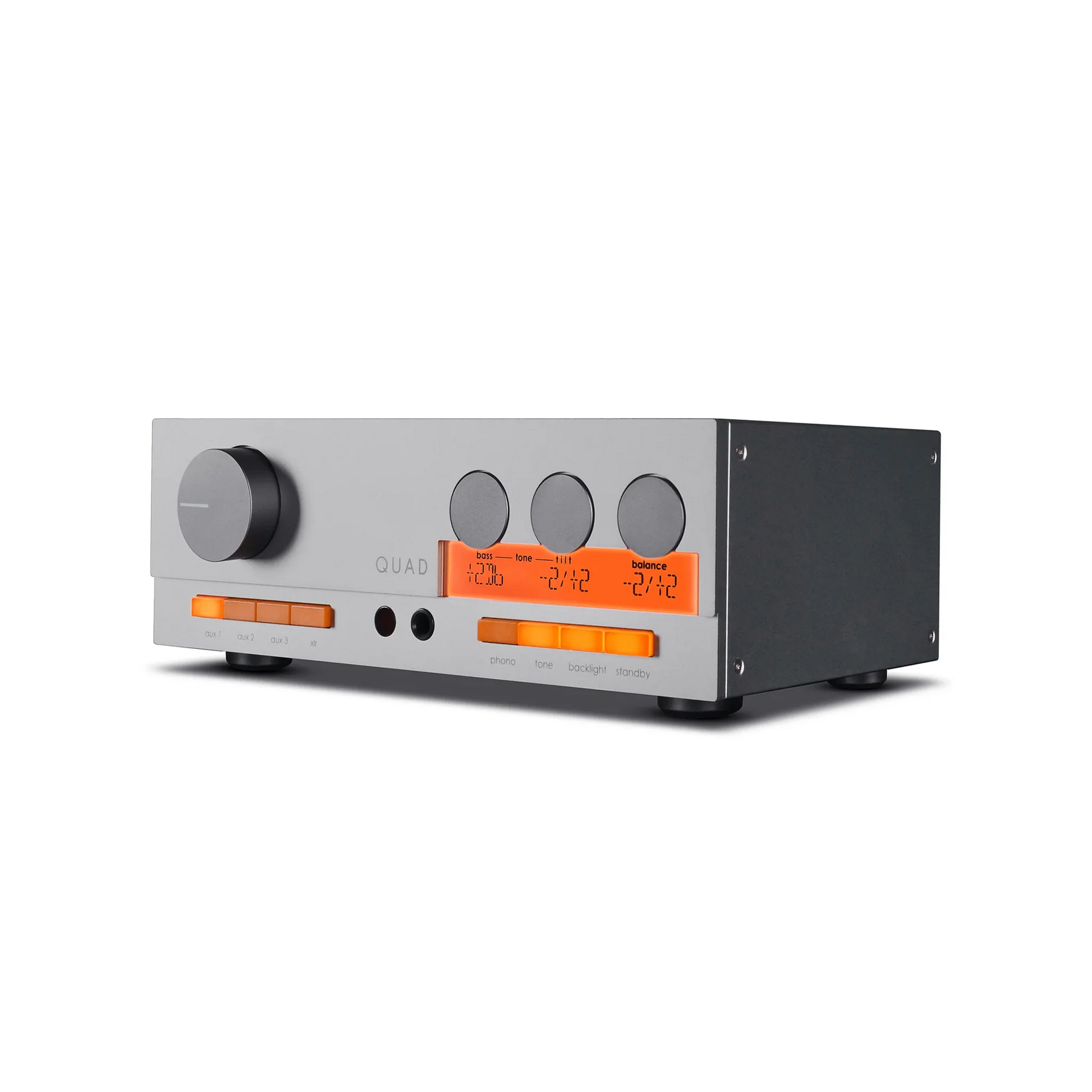

The new 33 keeps the distinctive "Quad Grey" finish and the signature orange accents, but it has been refined for the 21st century.
Chassis: A premium machined and anodized front panel with an all-metal body
Interface: While the original used push-buttons, the new version features an illuminated LCD screen (with retro-style dot-matrix text) and backlit orange buttons.
Controls: It features a high-quality motorized ALPS volume knob and a row of three endless rotary encoders for fine-tuning sound.
| Model | QUAD 33 |
| General Description | Pre Amplifier |
| Design Philosophy and Core Technology | Illuminated LCD screen |

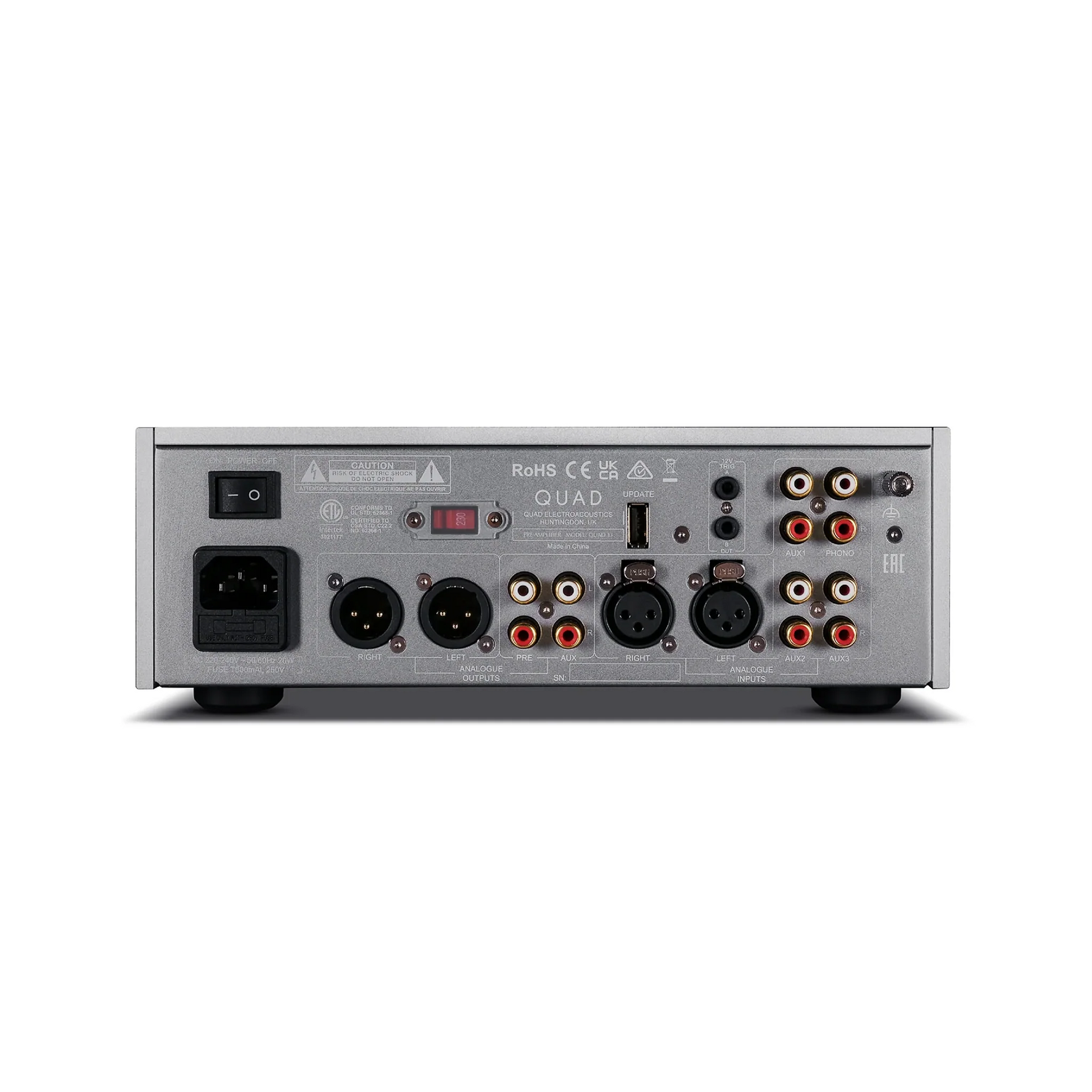

| Inputs | 3 x RCA, 1 x Balanced XLR (pair), 1 x Phono (MM/MC switchable) |
| Outputs | 1 x RCA (AUX), 1 x XLR, 1 x RCA (Pre Out), 1 x Headphone, 2 x 12V Trigger Out |
| Gain | 0dB (Line / XLR) |
| Input Sensitivity | (Vout=695mV) 695mV (Line / XLR) |
| Input Impedance | 10k (Line / XLR) |
| Total Harmonic Distortion (THD) | <0.0005% (1kHz, Line/XLR) |
| Frequency Response | 20Hz - 20kHz (+/-0.2dB) |
| Signal-to-Noise ratio (S/N) | > 108dB (A-weighted, Line/XLR) |
| Output Impedance | 120 ohms |
| Headphone Amplifier | Total Harmonic Distortion (THD) < 0.01% (1kHz, 50mW) |
| Output Impedance | 2.35 ohms |
| Load Impedance | 20 - 600 ohms |
| General Standby Power Consumption | <0.5W |
| Net weight | 4kg |
| Gross weight | 4.96kg |
| Dimensions (mm) (W x H x D) | 258 x 94 x 165 |
| Carton Size (mm) (W x H x D) | 330 x 192 x 257 |
| Finish | Classic QUAD Grey |
| Power requirements (depending on region) | 220 - 240V - 50 / 60Hz |
