Key Features

• 72 W per channel into 8 Ω / 90 W into 6 Ω
• High quality moving magnet phono stage
• High performance Rega DAC circuit for digital inputs

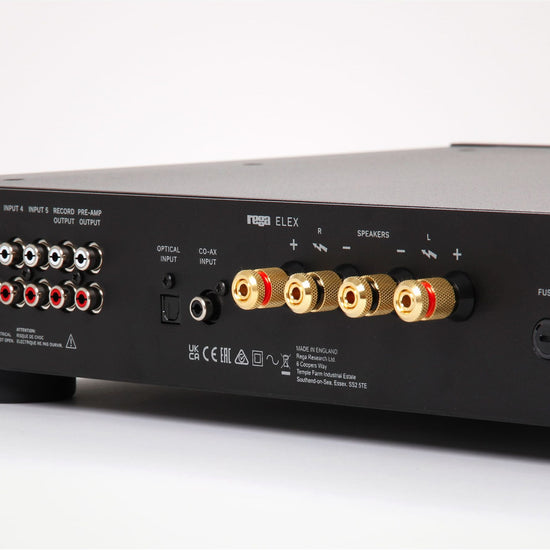

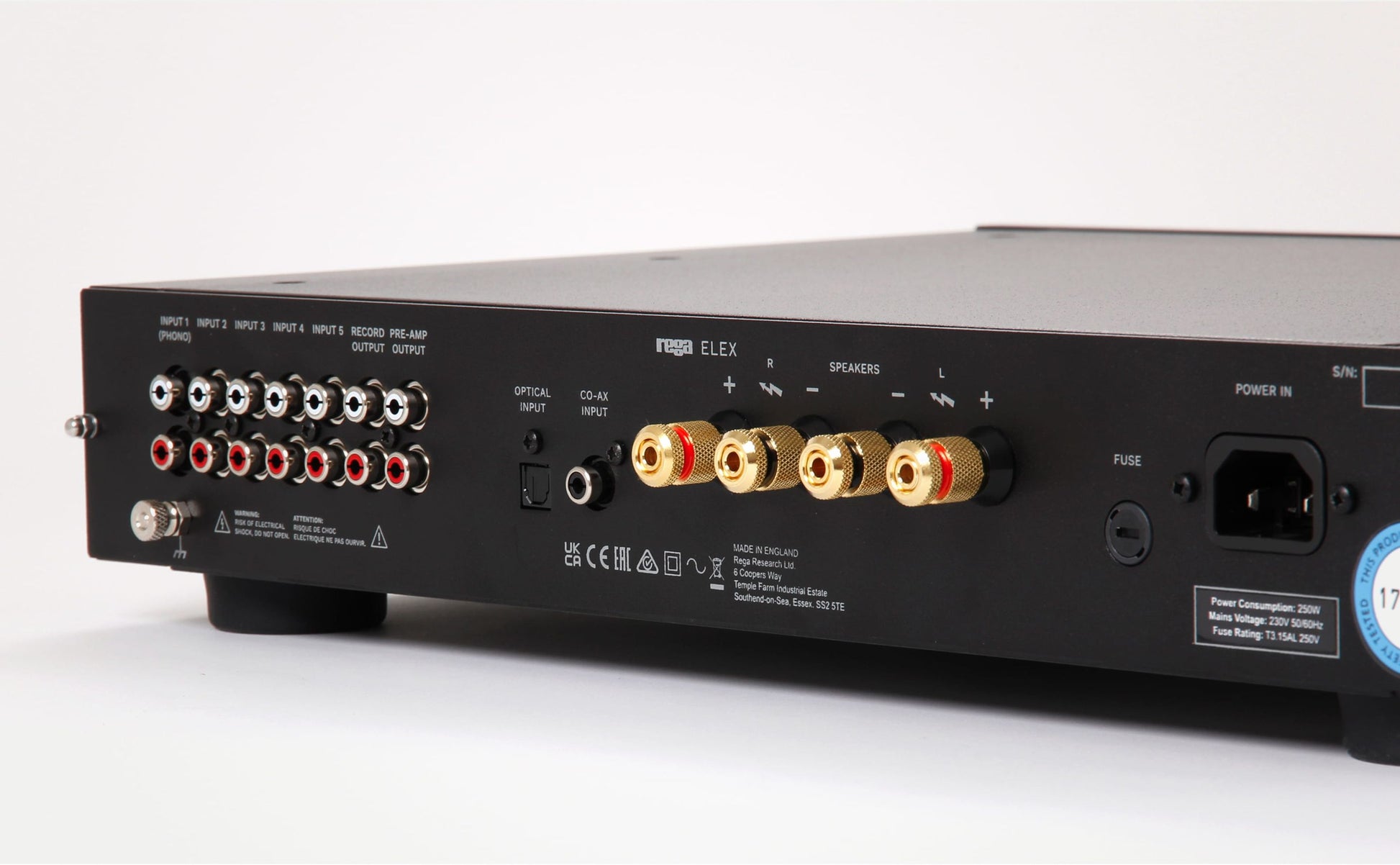

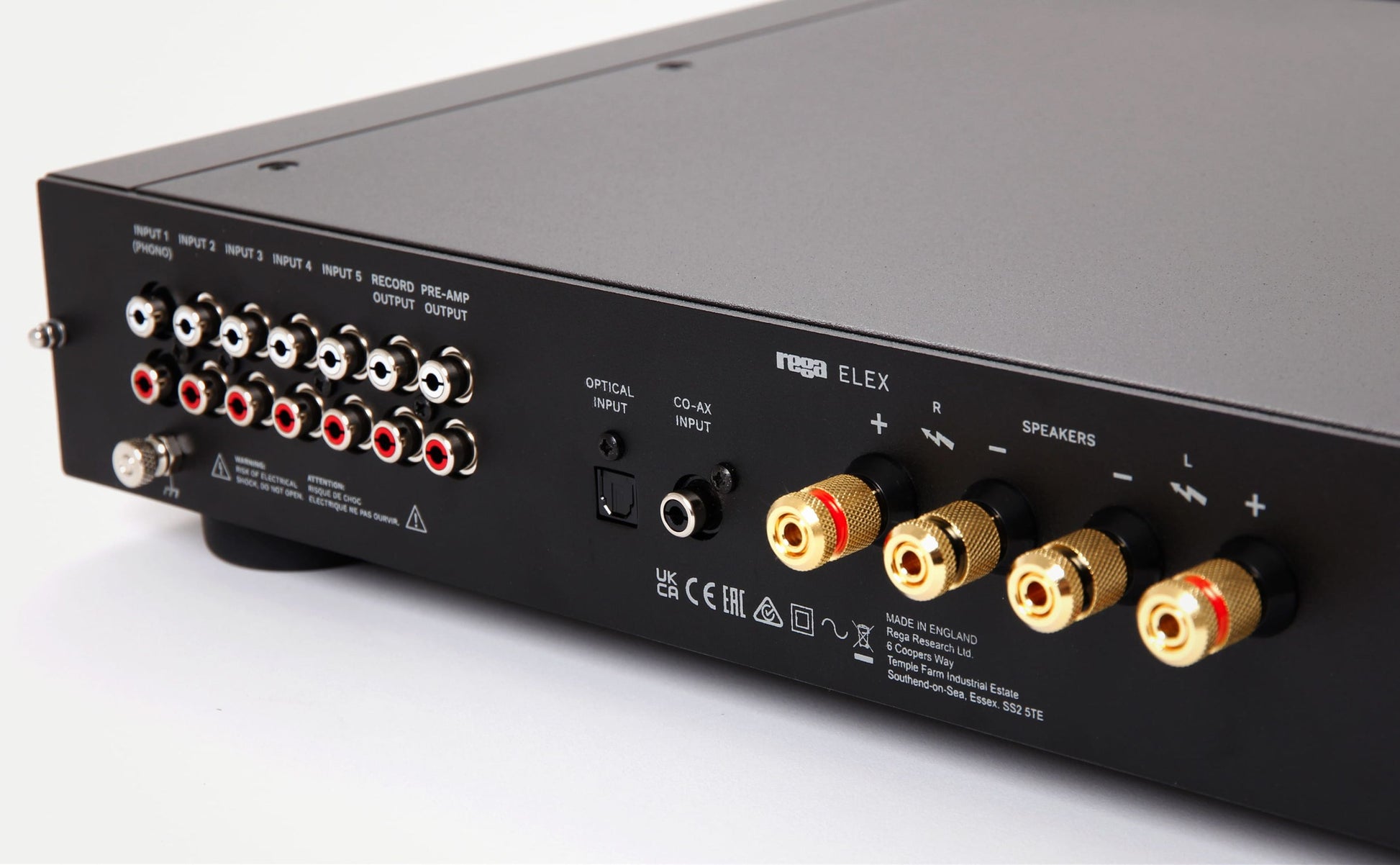

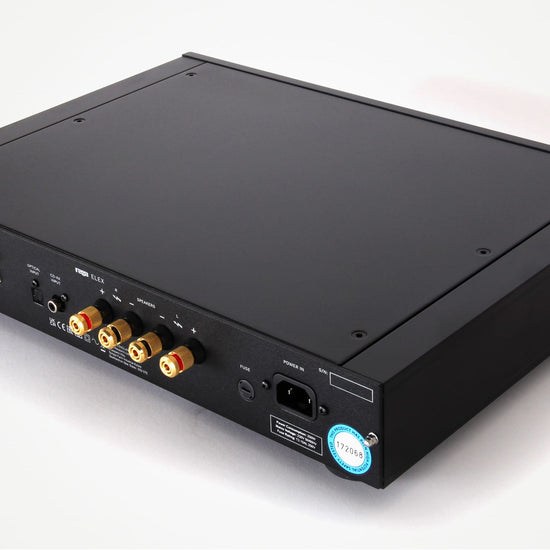

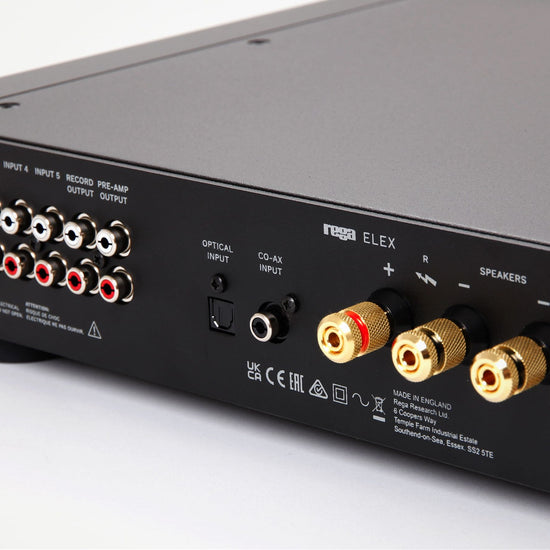

• 2 x Digital inputs - 1 x optical and 1 x Co-Axial
• Headphone output
• 4 Line level inputs
• New custom design case
• Thermal Cut-Out
• Lifetime warranty against manufacture defects.

• Amplification circuit

  Our engineers have re-engineered the entire ELEX circuit board to optimise performance. MK4 builds on previous Rega designs by using our multi-award-winning Class A/B power amplifier circuit to deliver a powerful 72W per channel into 8Ω loads. This power is provided by a quiet multi-stage linear supply whilst supply rails for digital and analogue sections are galvanically isolated.



  Digital Circuit / DAC

  The DAC is based closely on the hugely successful Rega DAC-R circuit. The galvanically/optically isolated digital inputs utilise a Wolfson S/PDIF receiver IC to provide exceptional detail and clarity from any connected source. Output is provided by a Wolfson DAC and Rega designed discrete line-driver circuit. Our engineers have worked exceptionally hard to ensure that the analogue side of the circuit is not affected in any way by the introduction of digital inputs.

  MM Phono Stage

  A high performance Rega designed integrated moving magnet (MM) phono stage is carefully built into the circuit. The RIAA equalization has been split into two stages to minimise interaction. Polyester capacitors have been used in the signal path and polypropylene capacitors are used in the RIAA equalization circuits.



  Headphone Output

  We have taken great care to incorporate the headphone socket on the Elex MK4. This has been configured such that the speaker switching is performed by the output mute relay to avoid obstructing the signal path ensuring no loss of performance when it is not in use.

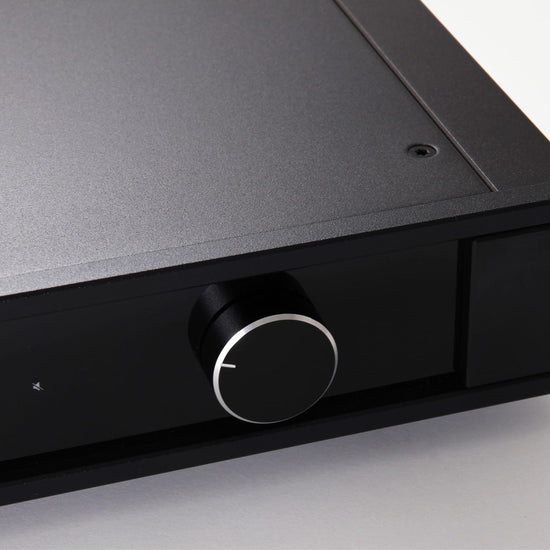

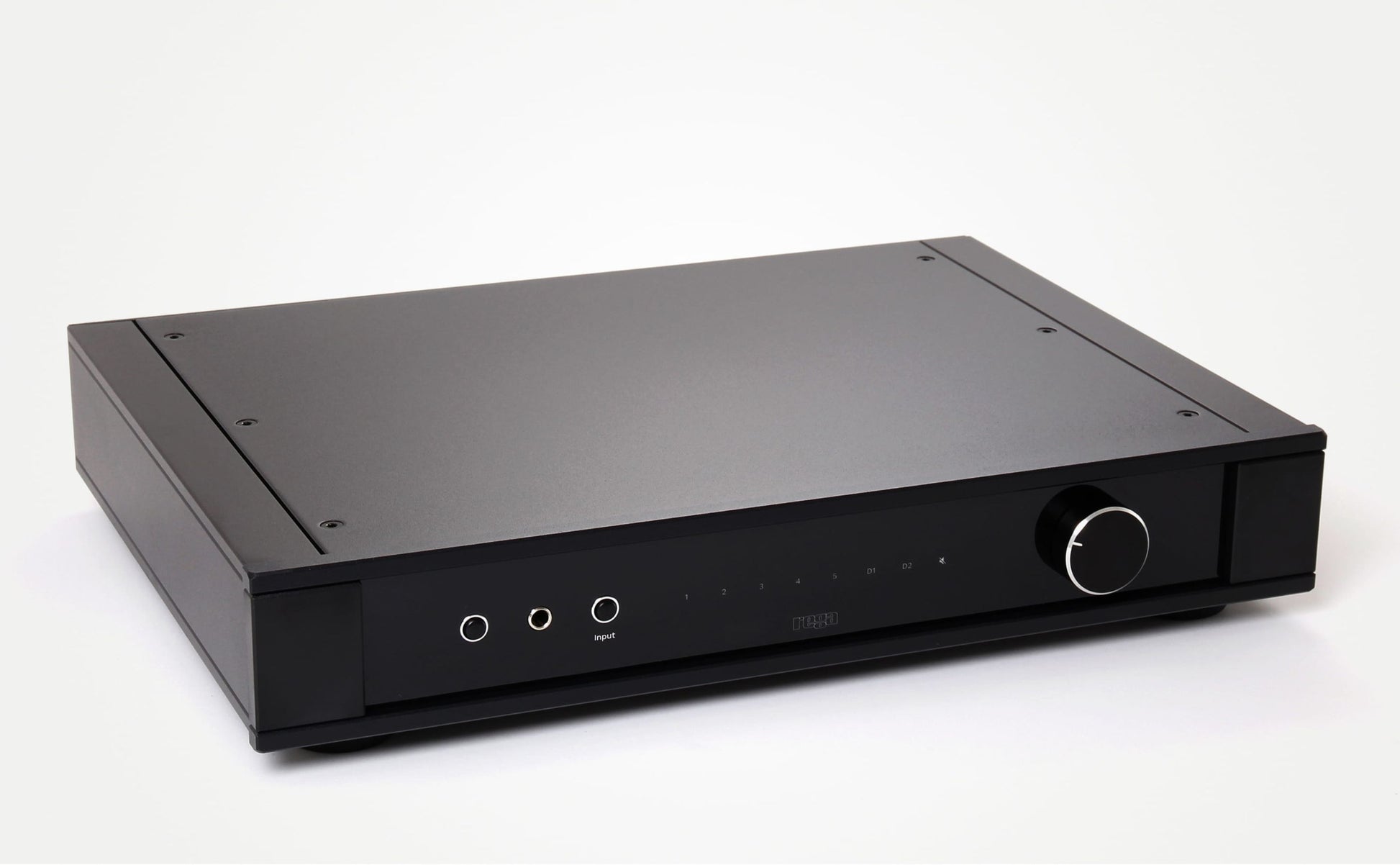

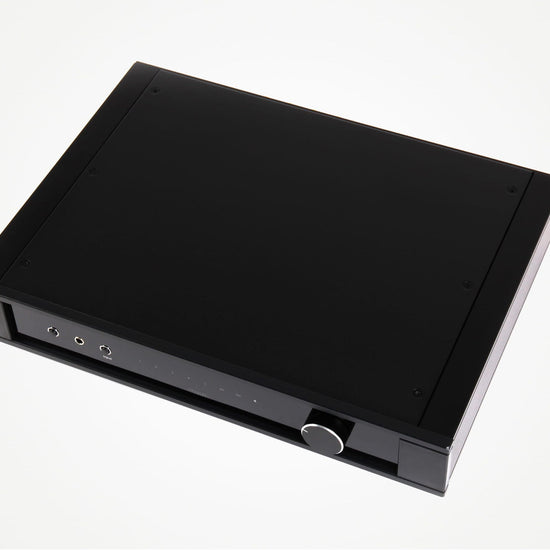

  Custom Case

  The new custom case design and construction brings the Elex MK4 inline with the rest of the Rega range and provides improved heat dissipation by using the entire case as an ultra efficient heat sink.

  Protection

  The Elex MK4 includes Thermal Cut-Out, short circuit protection and DC protection to prevent the risk of damage from excess heat, excessive currents or short circuits.



  Technical Specifications

  Power Amplifier Output (at rated 230/115 V Supply voltage)

  72 W into 8 Ω
  90 W into 6 Ω

  Dimensions (W × H × D)

  432 x 82 x 340 (D includes loudspeaker terminals)

  Weight

  11 Kg

  Supported Sampling Rates

  32, 44.1, 48, 88.2, 96, 176.4, 192kHz

  Supported Bit Depths

  16 to 24 bit

  Power Consumption

  250 W at 1dB below clip into 8Ω

  Output Sensitivity (at rated inputs)

  Record Output 164mV
  Pre-amplifier Output 625mV
