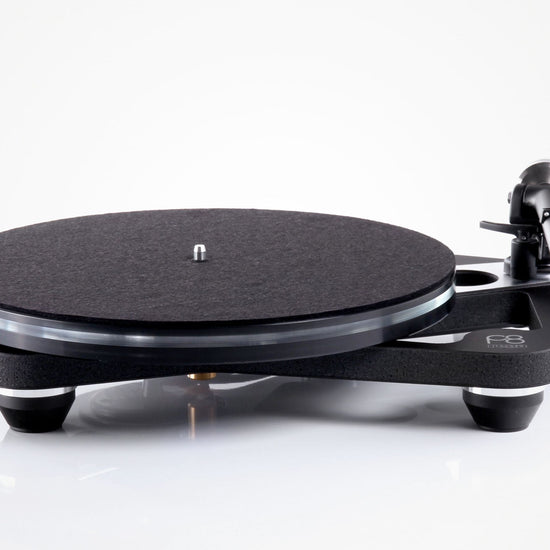

Rega Planar 8 / Ania Pro / Apheta 3 / ND7 / or No Cartridge

The Planar 8 was inspired by the ultimate Rega turntable, the ‘Naiad’. We decided early on that instead of an evolution of the previous RP8, the new Planar 8 was to be developed and engineered to encapsulate the essence of ‘Naiad’ at an affordable price. Our aim was to deliver a level of performance far beyond what has been achieved at this price point before.

Please note: The Planar 8 will now ship with new look NEO MK2 power supply as standard.

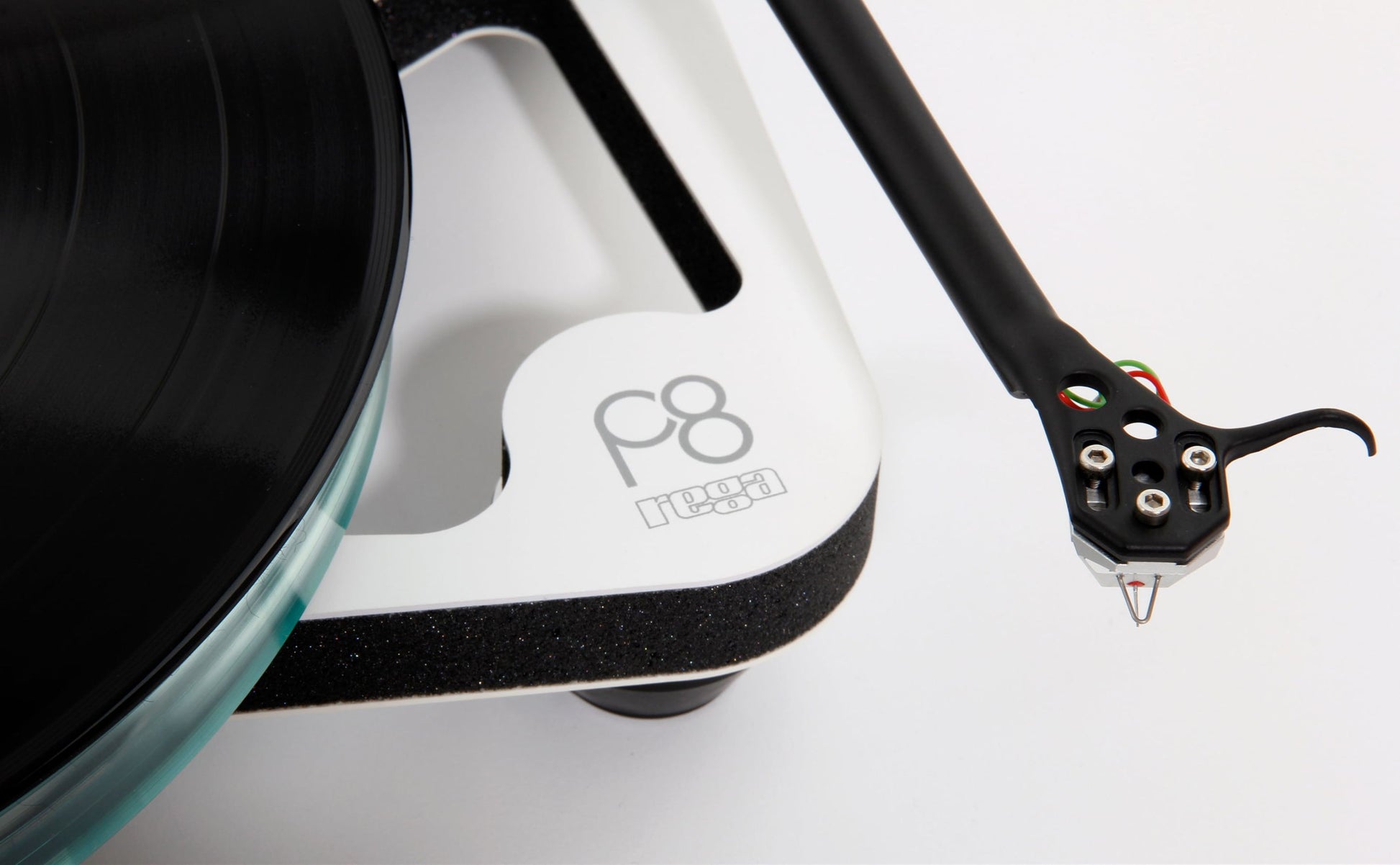

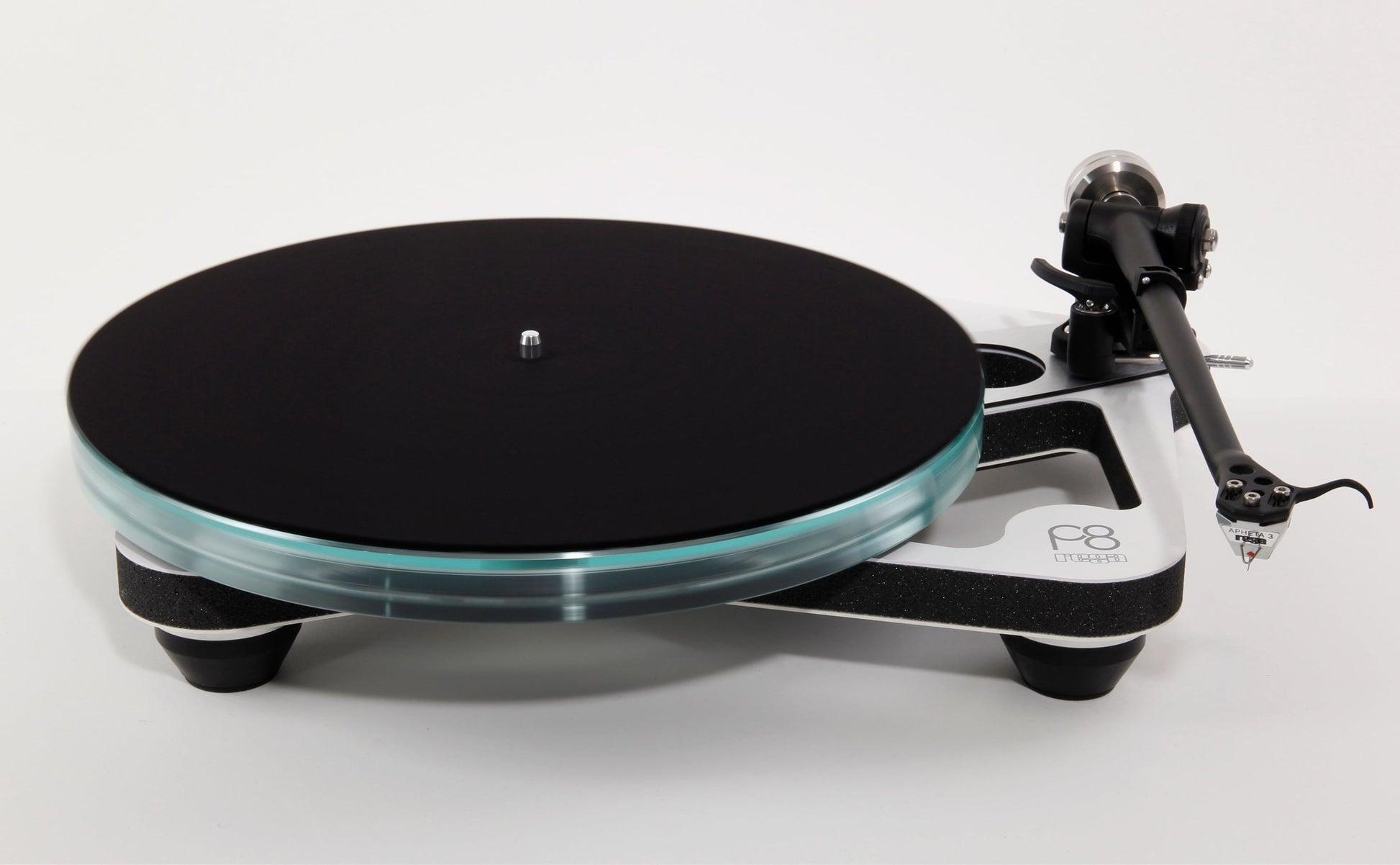

*New matt white finish available from April 2023 - The white Planar 8 is supplied with a clear dustcover and clear triple layer float glass platter.

Engineering masterclass

Every aspect of the Planar 8 is engineered to extract as much detail from the vinyl surface as possible. We have used the most advanced materials and engineering solutions built around a supremely lightweight plinth to ensure the greatest level of performance. The Planar 8 is supplied with the new RB880 tonearm and Neo PSU as standard which offers electronic speed change, advanced anti-vibration control and user adjustable electronic fine speed adjustment to ensure total accuracy and control over the motor. The outer frame of the previous model has now been removed and a new stylish, removable, single piece dustcover has been introduced further reducing the overall mass of the turntable.

Key Features

• RB880 precision tonearm

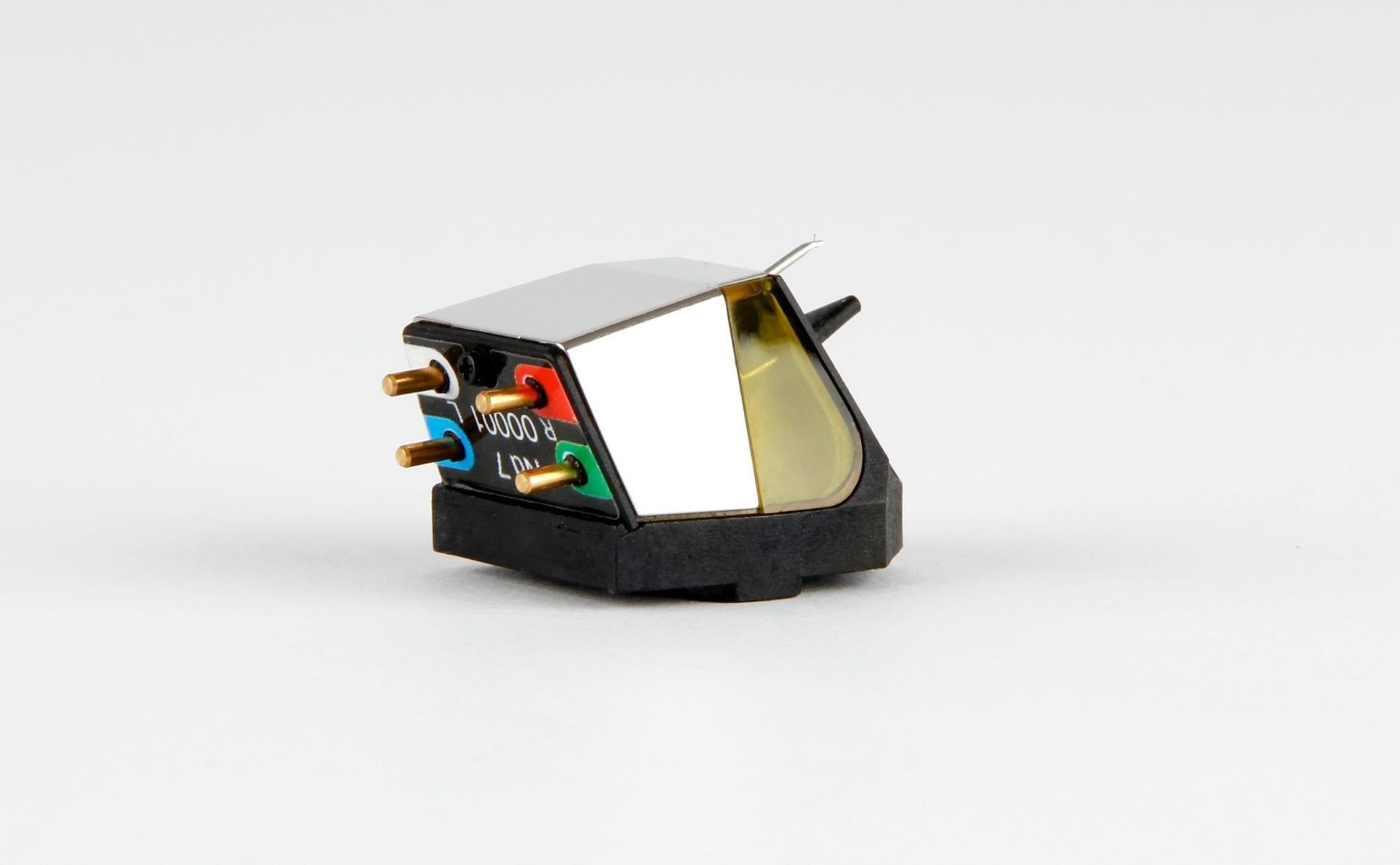

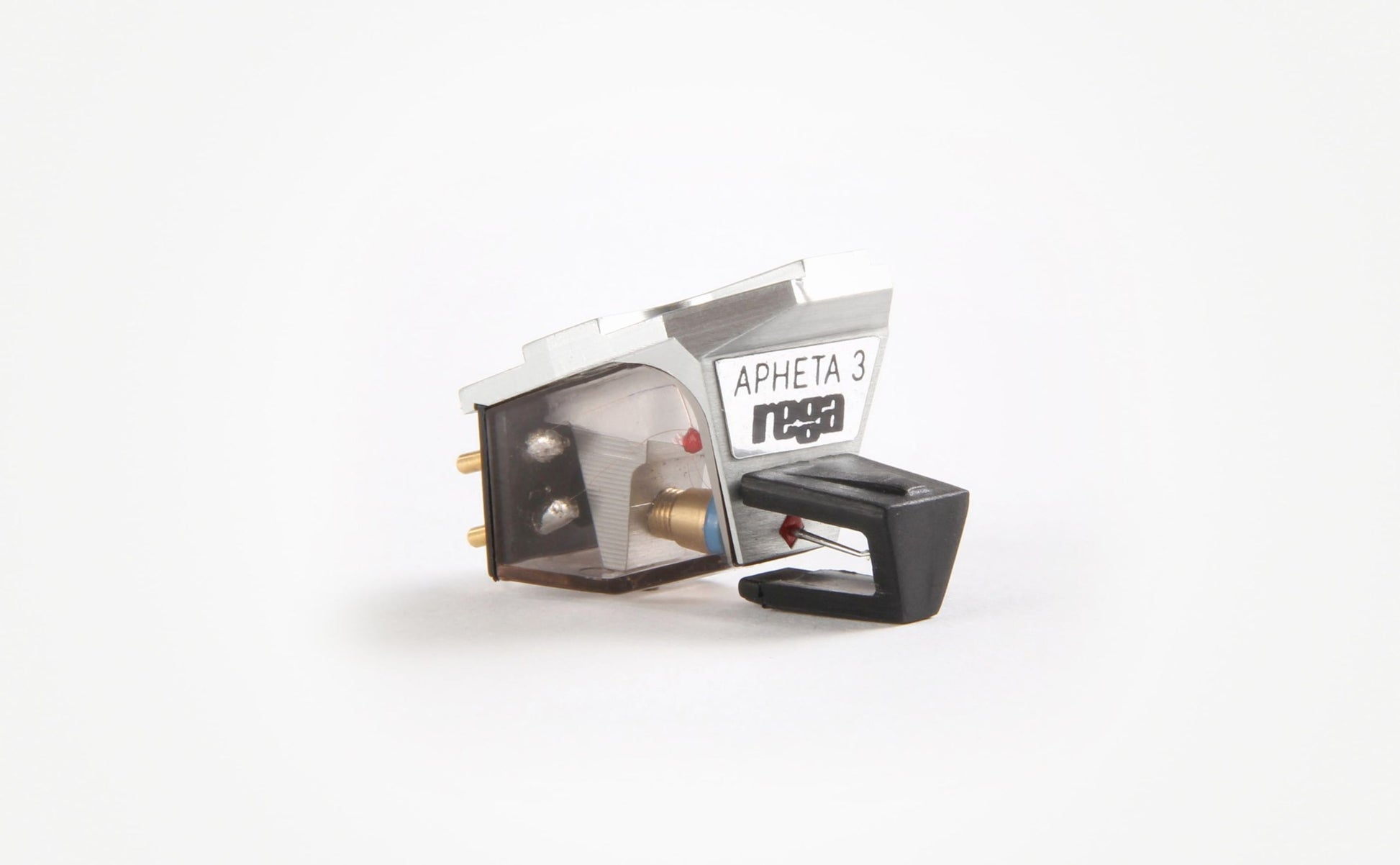

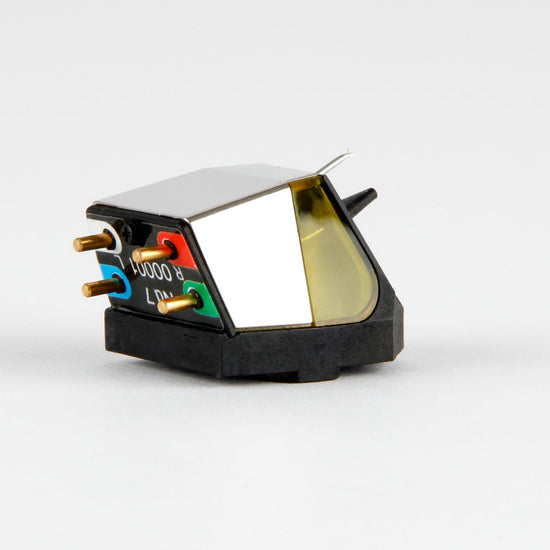

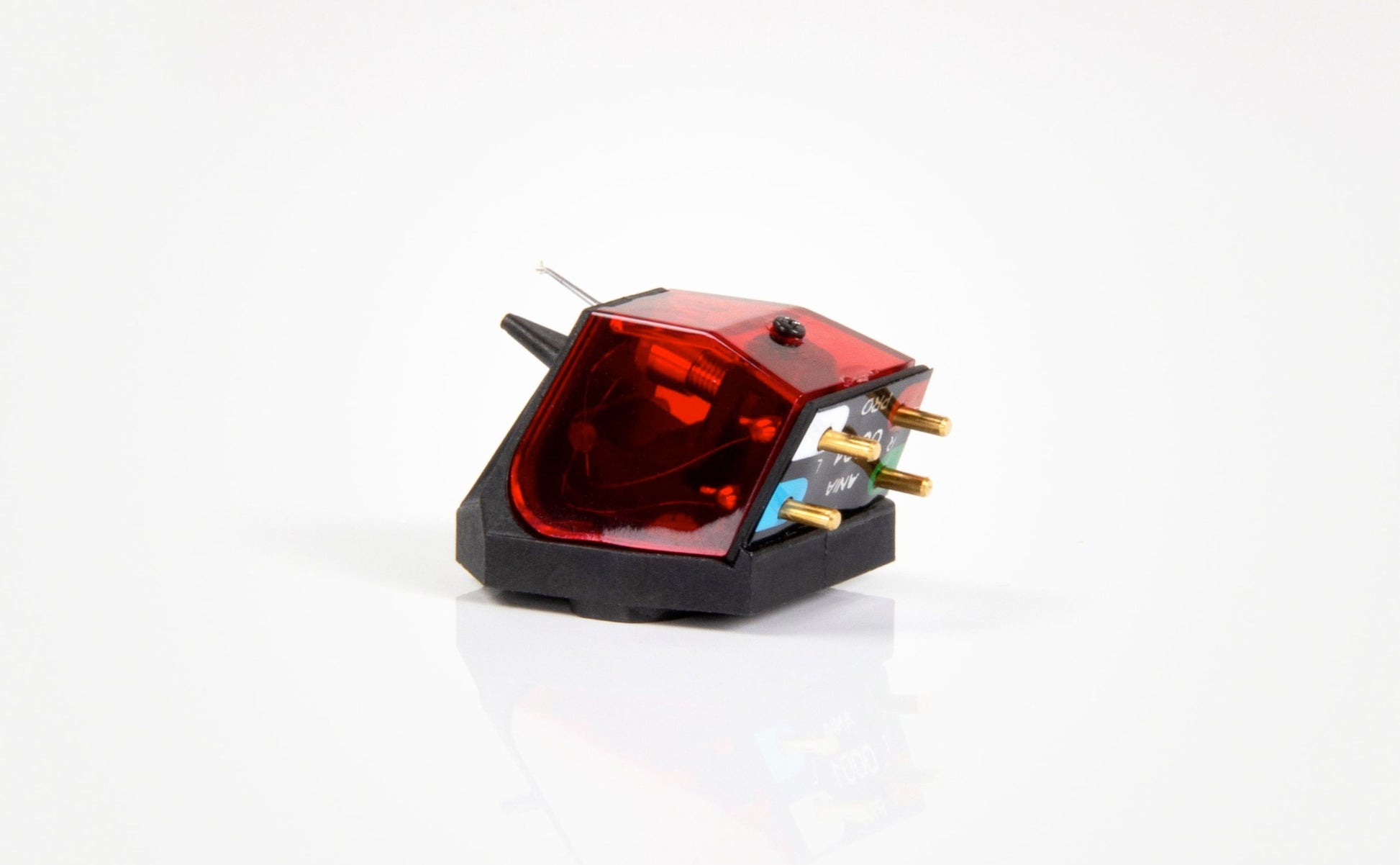

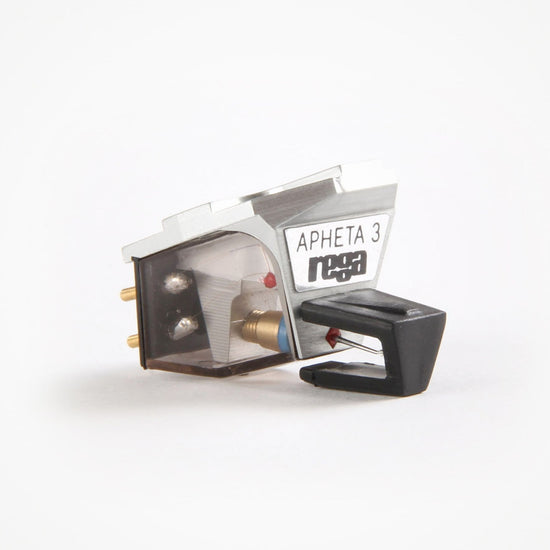

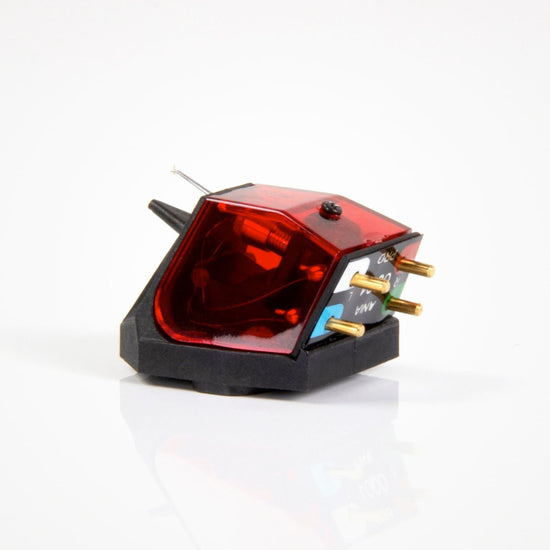

• Nd7 (MM), Ania Pro (MC), Apheta 3 (MC) factory fitted (optional)

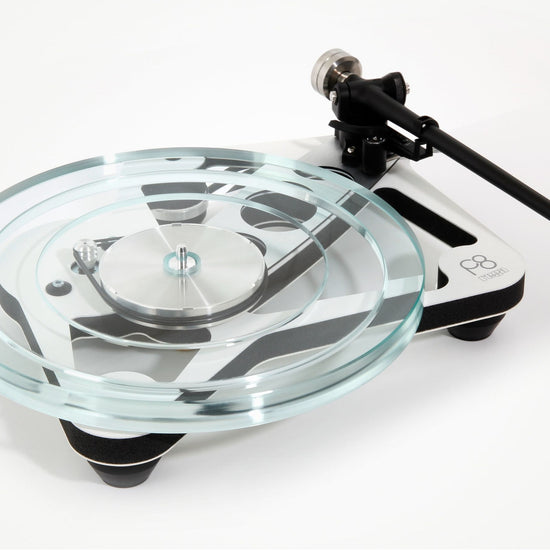

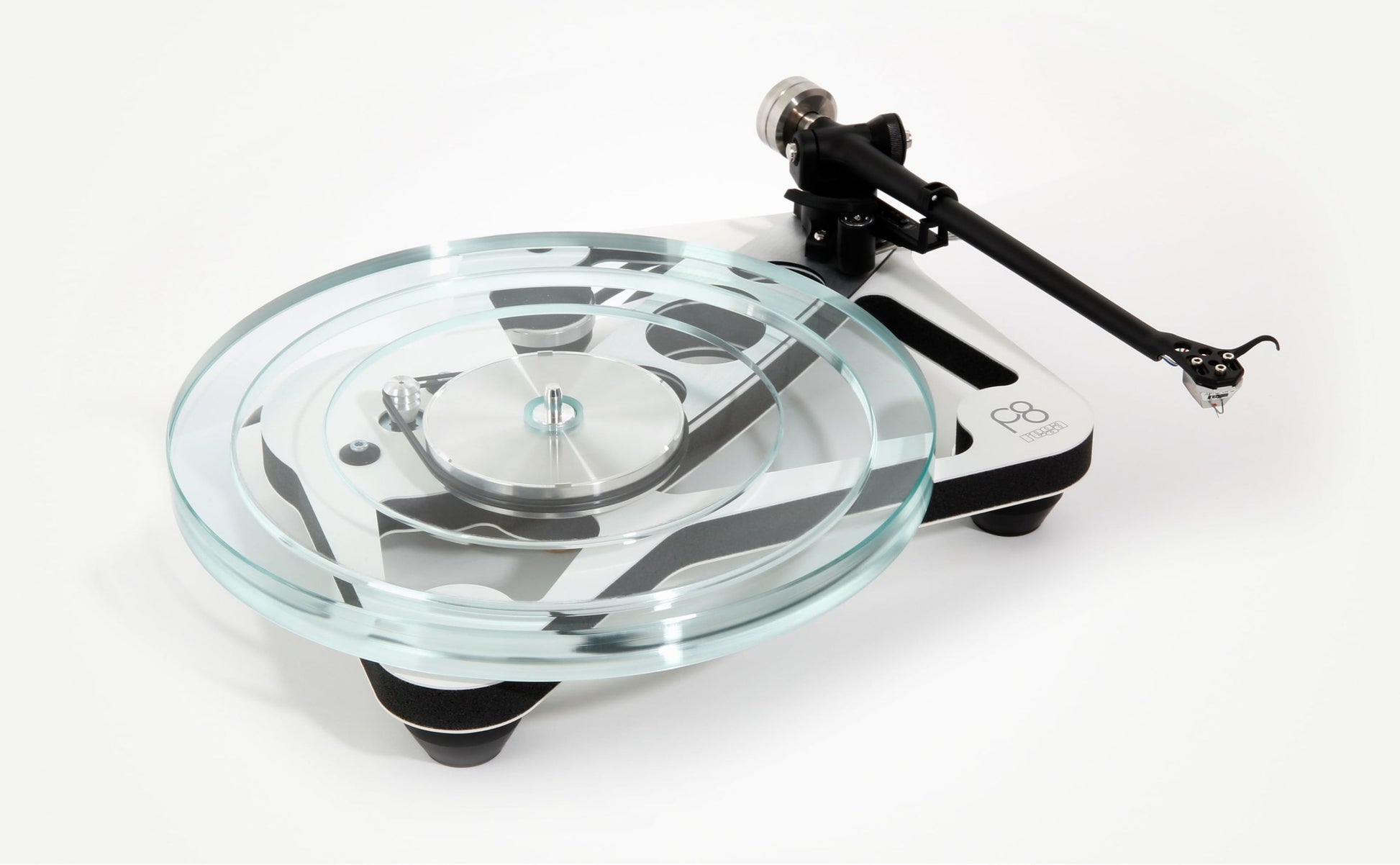

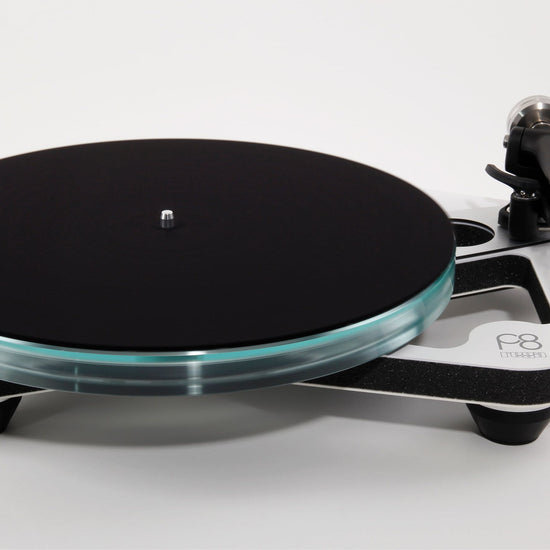

• Super flywheel effect triple layer glass platter
• Double brace technology
• Tancast 8 foam core plinth
• Custom matched Neo PSU
• Reference EBLT drive belt fitted as standard

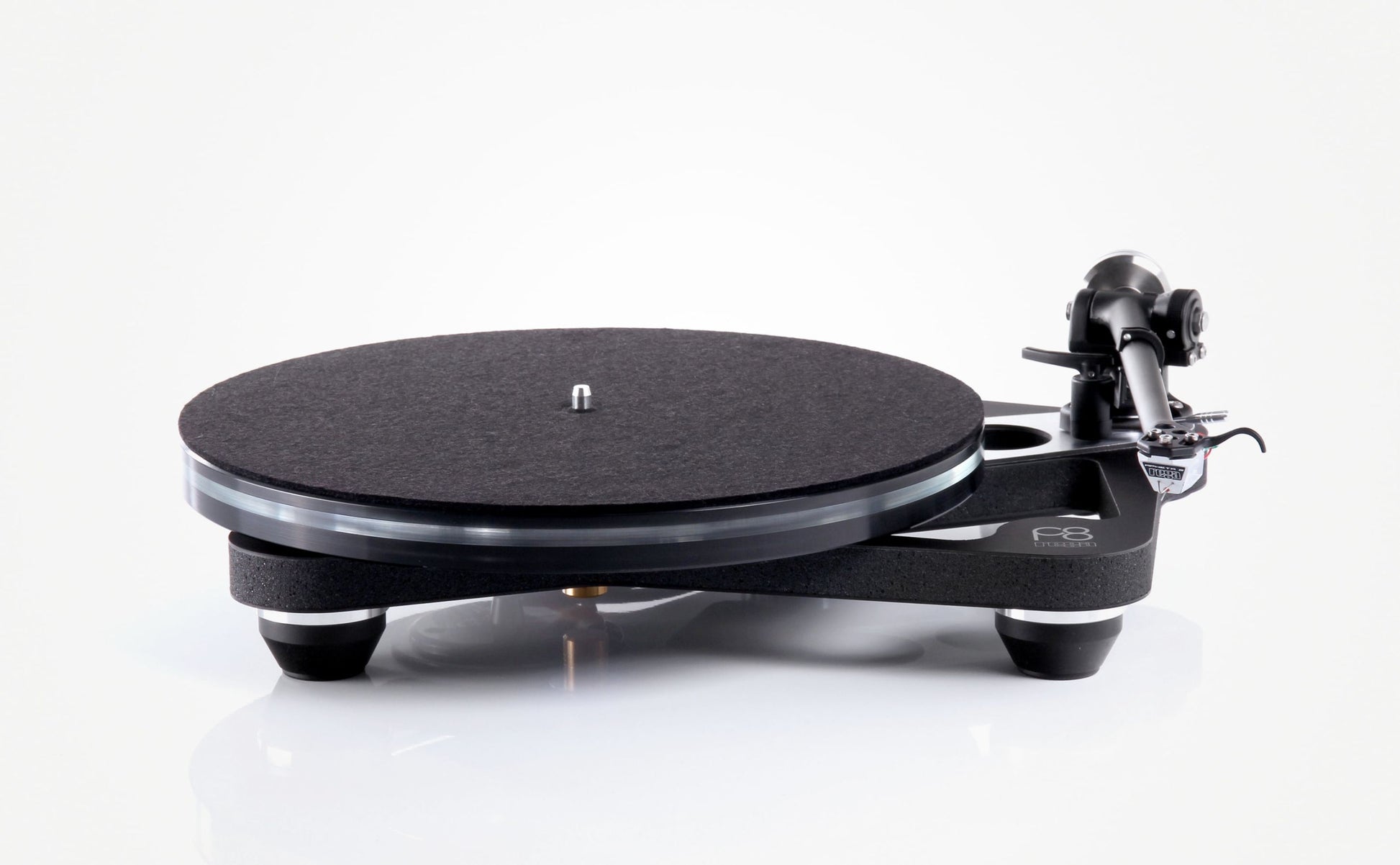

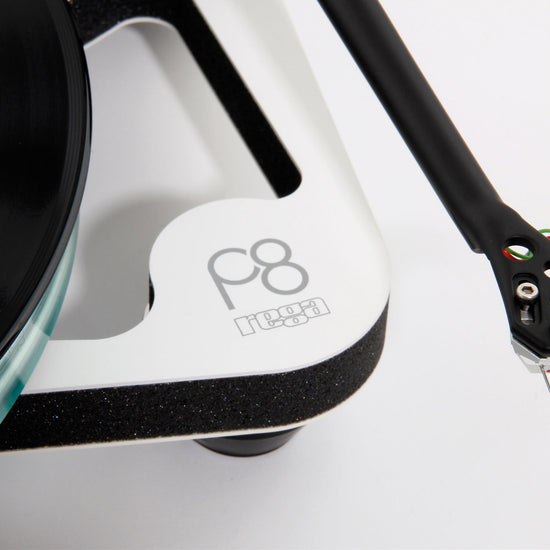

• Available in two matt finishes, Polaris grey and white (new for 2023)
• Lifetime warranty against manufacture defects.



  Product Details

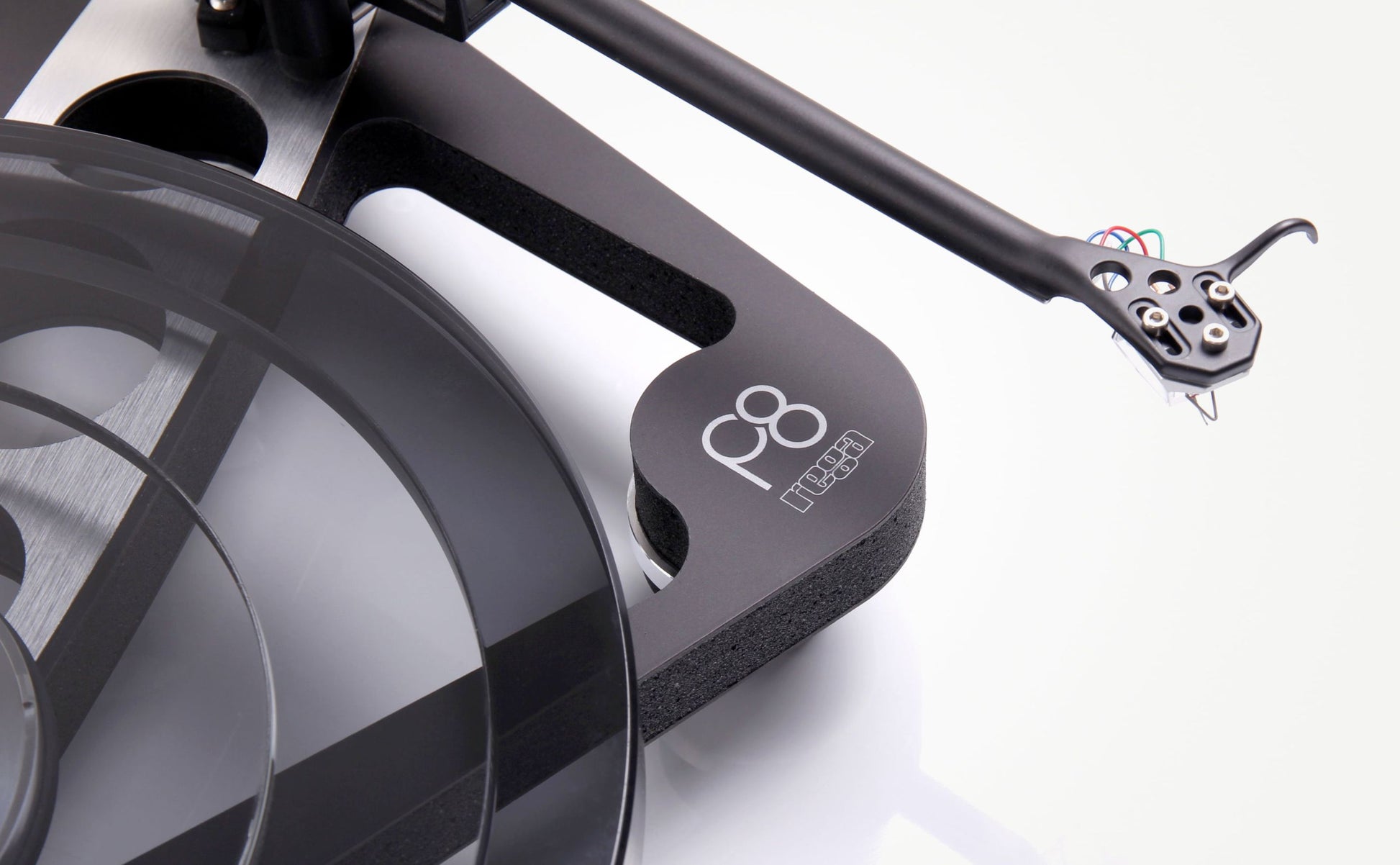

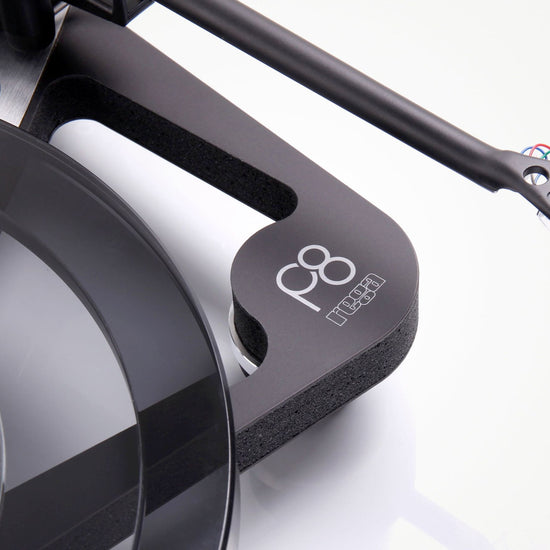

  Ultra Lightweight Plinth

  The Planar 8 is the second Rega turntable constructed using our latest ultra-lightweight Tancast 8 polyurethane foam core (a material developed for the aerospace industry). This material is sandwiched between two layers of HPL (high-pressure laminate).

  HPL is exceptionally thin and extremely rigid. This new construction makes the new Planar 8 skeletal plinth 30% lighter than the original RP8 while offering increased rigidity over the previous model.

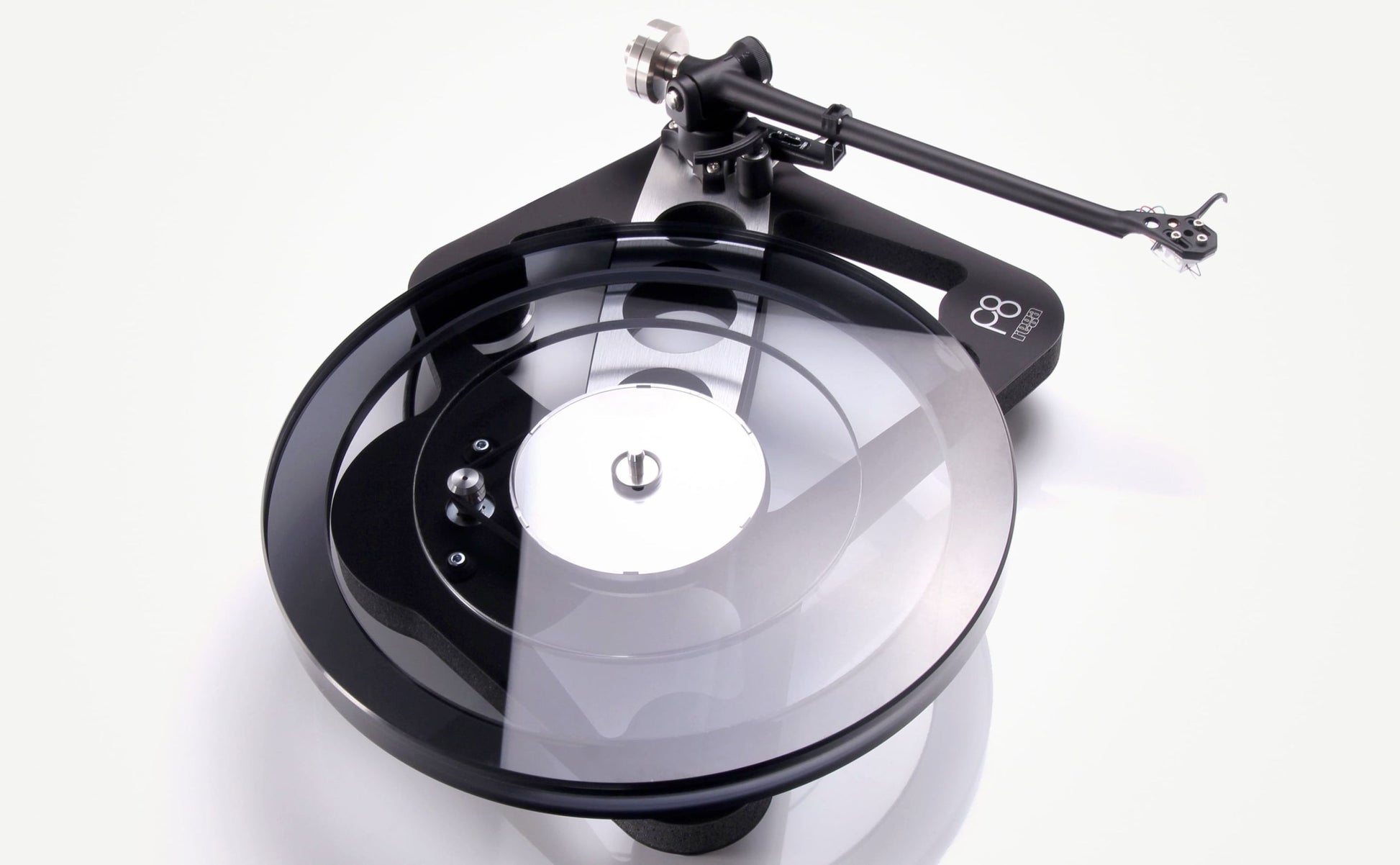

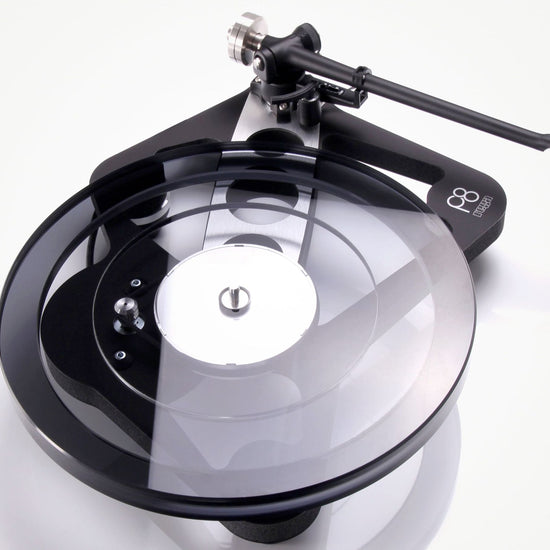

  Double Brace Technology

  A super lightweight plinth combined with a phenolic resin double brace mounted specifically where the increased rigidity is required (between the tonearm mounting and the main hub bearing) forms a structurally sound “stressed beam” assembly. This rigid plinth design prevents energy absorption and unwanted resonances which will add unnatural distortions to the music.

  Equally, heavier mass can transfer more unwanted energy such as motor or bearing noise directly into the rotating record. The use of braces instead of the complete skin allows double thickness phenolic resin in these key areas while providing further weight reduction to the plinth which directly addresses the issue of mass absorption and unwanted energy transmission.


  RB880 Tonearm

  For the new RB880 we have introduced an improved vertical bearing assembly constructed using an aluminium and stainless-steel, low mass assembly with vastly improved stability and rigidity.

  This tonearm is using our advanced preloaded zero tolerance bearing assembly adjusted to less than 1000th of a mm, this gives friction-free movement and zero levels of unwanted play. This subtle but effective new structure is only visible via small windows at the rear of the new bias housing assembly (see image below).

  A thinner stainless steel balance weight is used, allowing greater adjustability and compatibility. Finally, the RB880 is terminated with a re-designed, low capacitance phono cable terminated with high quality, locking phono plugs to ensure the best possible connection.



  Neo PSU

  The Neo PSU offers a smooth power supply, an advanced anti-vibration circuit and fine electronic speed adjustment. It uses the RP10 DSP (digital signal processing) generator built upon a high stability crystal.

  The DSP generator will divide the accurate signal from the crystal to the exact frequency required to turn the platter at the selected speed. The DSP generator will also produce a near-perfect sinusoidal waveform to drive the motor. This, along with an efficient drive amplifier, generates a 24 V, AC balanced signal of less than 0.15% distortion, which is completely unaffected by any changes in the mains/line voltage and conditions. This then drives the turntable’s anti-vibration circuit, which is situated beneath the turntable.



  Technical Specifications

  Selectable Speed

  33 1/3 rpm, 45 rpm

  Planar 8 Turntable Dimensions (with dustcover fitted) (W x H x D)

  420 x 125 x 315 mm

  Neo PSU Dimensions (W x H x D)

  180 x 50 x 155 mm

  Turntable Weight

  4.2 kg

  Neo PSU Weight

  0.6 kg
