Atoll AM100 Signature
- Estimated delivery: Sep 12 - Sep 16
-
Free shipping on all orders over $125
Designed and manufactured in France, the Atoll Electronique AM100 Signature is a high-performance stereo power amplifier engineered around dual-mono topology and Class A/B discrete circuit design. It delivers clean dynamic headroom, exceptional instrument separation, and the characteristic warmth associated with MOS-FET output stages.
Key Architecture & Highlights
-
Dual-Mono Power Supply: Incorporating two independent 340 VA toroidal transformers ensures complete channel separation, preventing power sag under high dynamic demands and maintaining a dark background with precise soundstaging.
- MOS-FET Output Stages: Polarized in Class A/B, MOS-FETs yield a tube-like warmth in the midrange while preserving high-speed transients, tight bass grip, and extended high-frequency response.
- Flexible Operating Modes: Equipped with an internal switch to bridge the unit into a mono power block. It can be deployed as a single stereo unit, in a dual-mono setup (two AM100 units), or for bi-amplifying bi-wireable speakers.

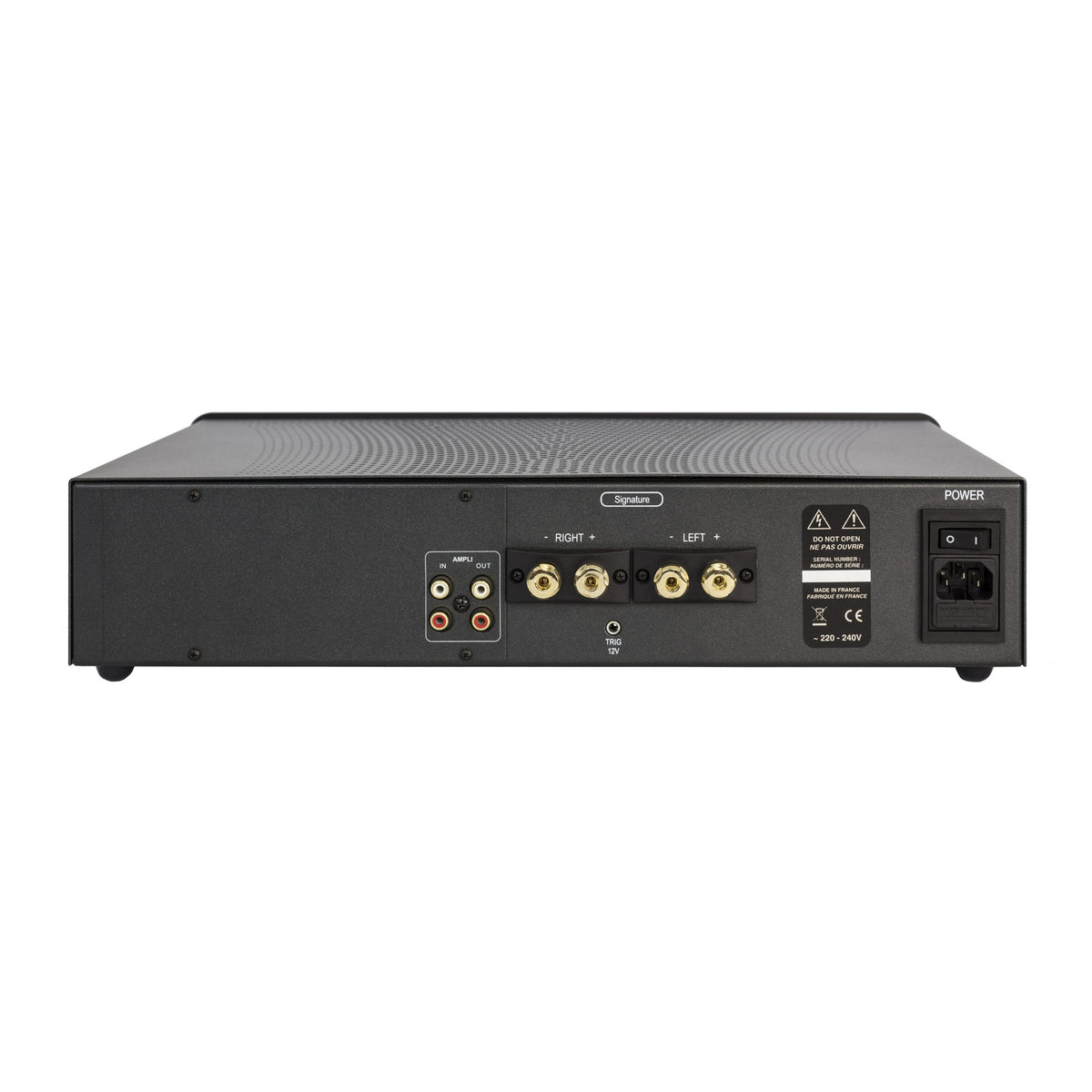

- Connectivity & Control: Includes standard RCA stereo inputs, pass-through RCA stereo line outputs ( simplifying bi-amping configurations), gold-plated binding posts, and a standard 12V trigger input for auto-powering alongside an Atoll preamplifier (e.g., PR200 Signature or PR300 Signature).

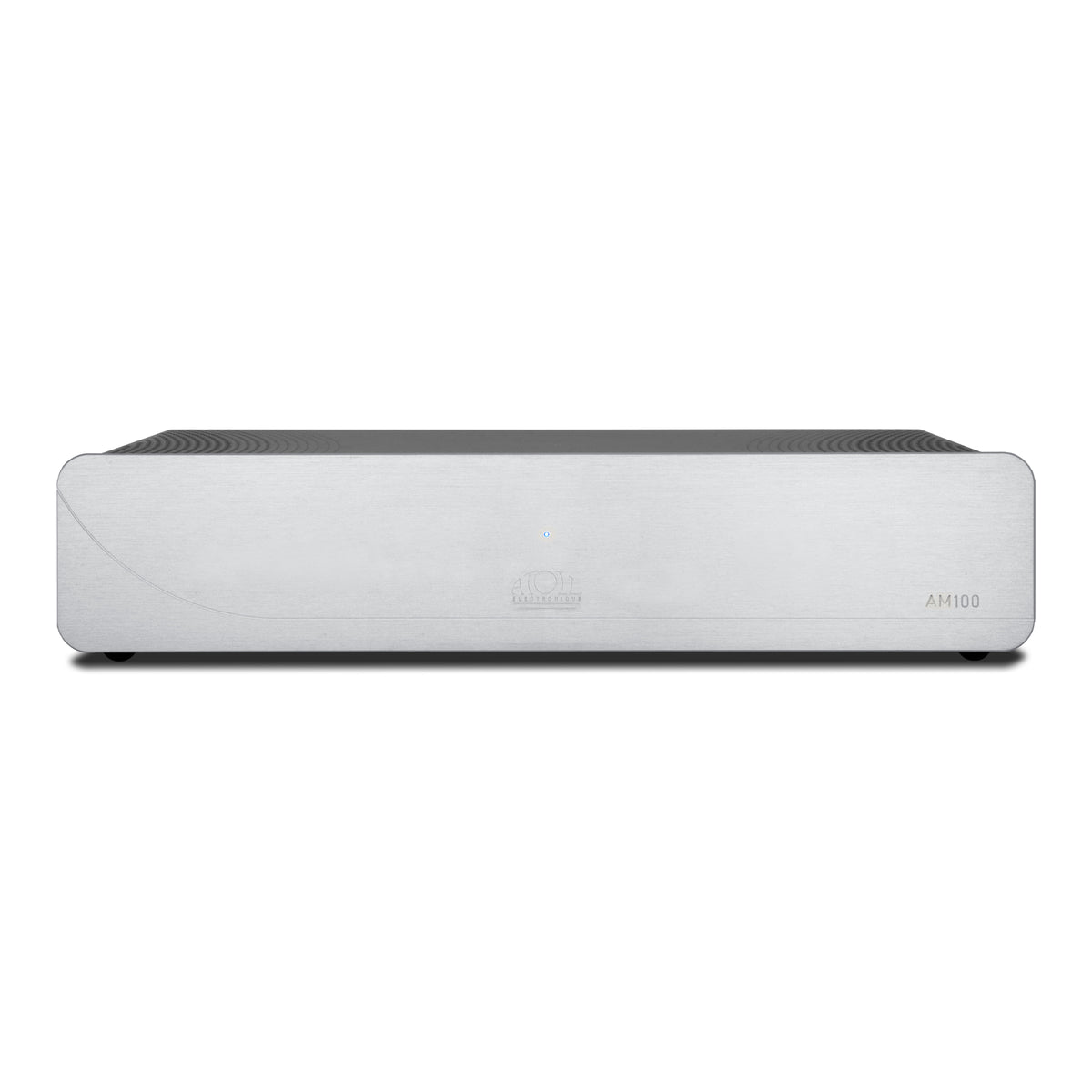

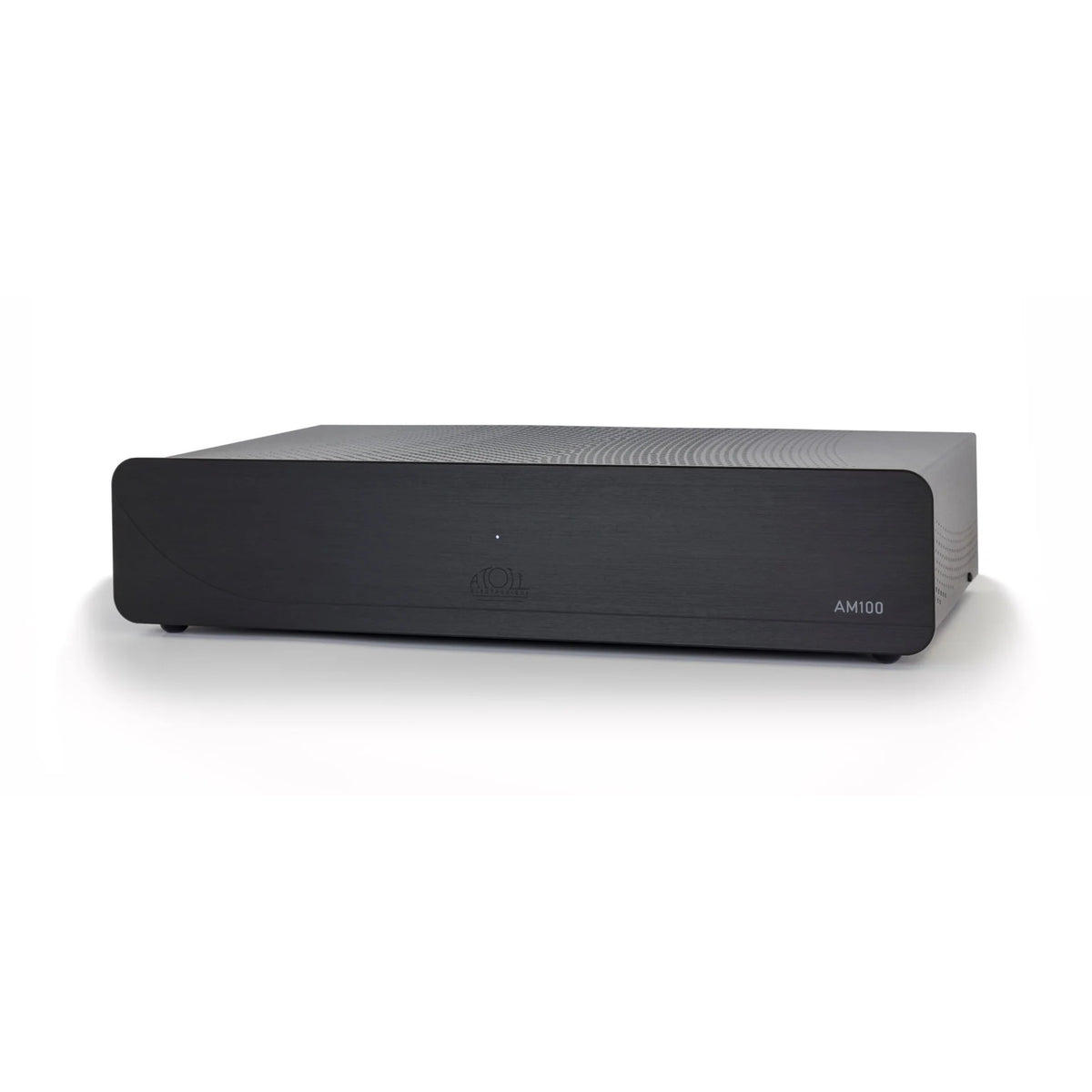

- Build Quality: Features a heavy-gauge steel chassis equipped with a 4 mm brushed aluminum front panel, available in black or silver.
| Feature | Specification |
| Output Power (Stereo) | 100 W RMS per channel @ 8Ω / 140 W RMS @ 4Ω |
| Output Power (Mono / Bridged) | 150 W RMS @ 8Ω / 165 W RMS @ 4Ω |
| Pulse Power | 180 W / channel |
| Power Supply | Dual Toroidal Transformers (2 × 340 VA = 680 VA total) |
| Total Capacitance | 32,247 µF filter array |
| Transistor Type | MOS-FET output transistors (Class A/B) |
| Frequency Response | 5 Hz – 100 kHz (Bandwidth up to 200 kHz) |
| Rise Time / S/N Ratio | 1.3 µs / 100 dBA |
| Dimensions & Weight | 440 × 291 × 95 mm; 11 kg (~24.2 lbs) |
