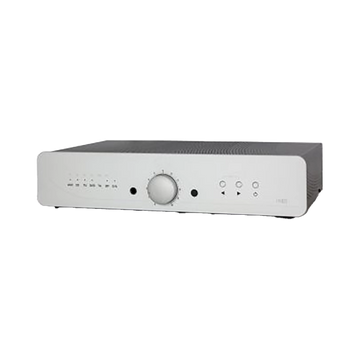

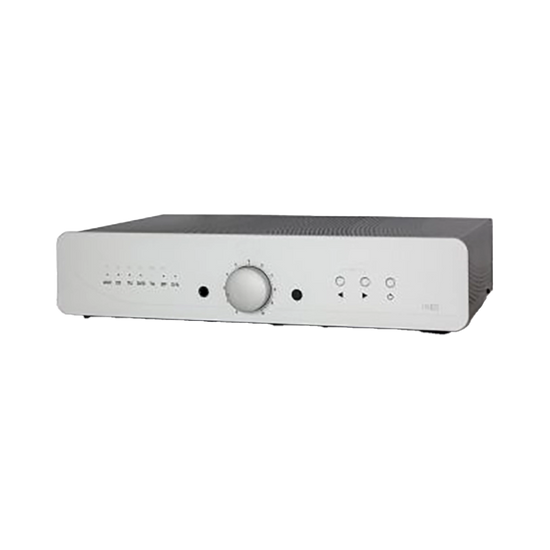

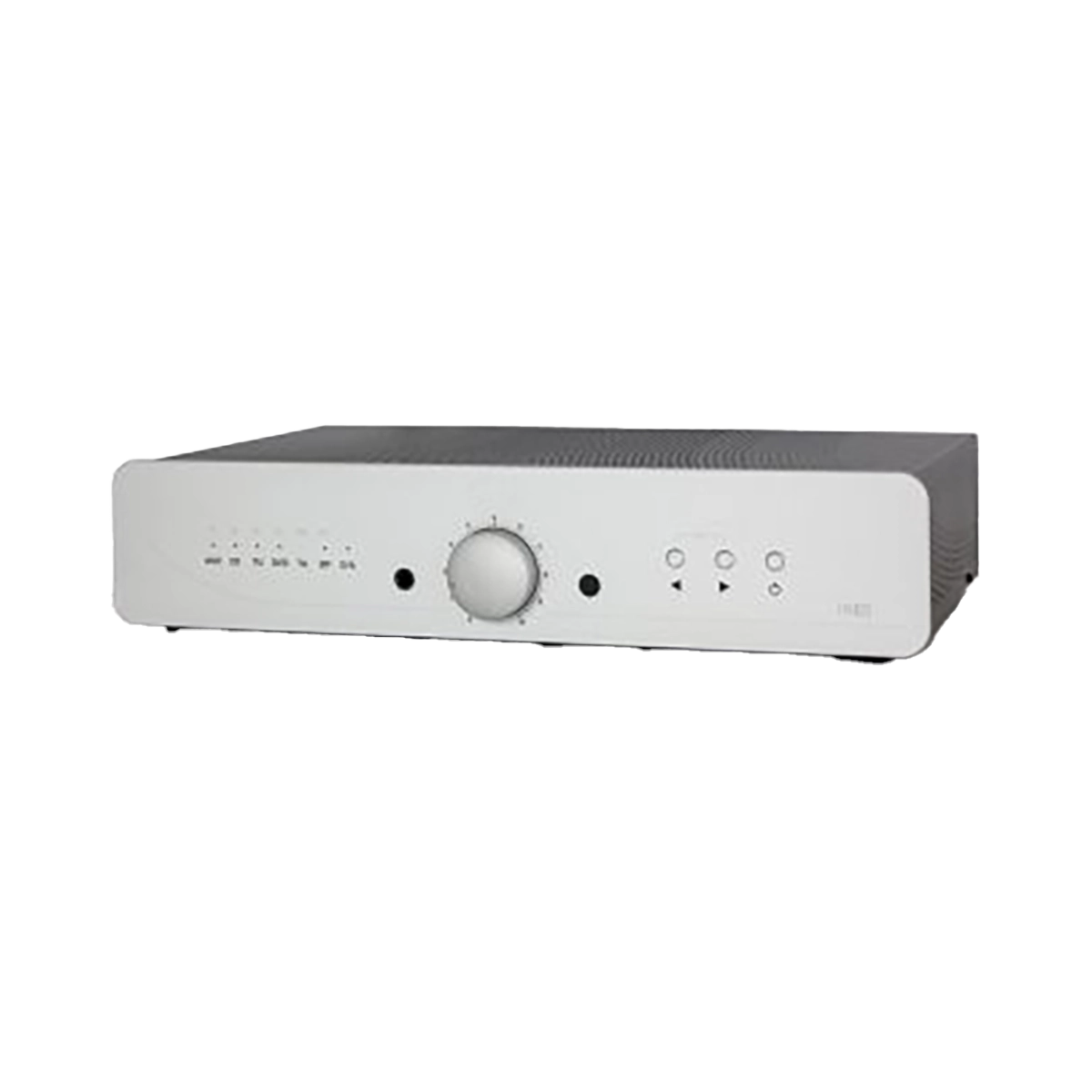

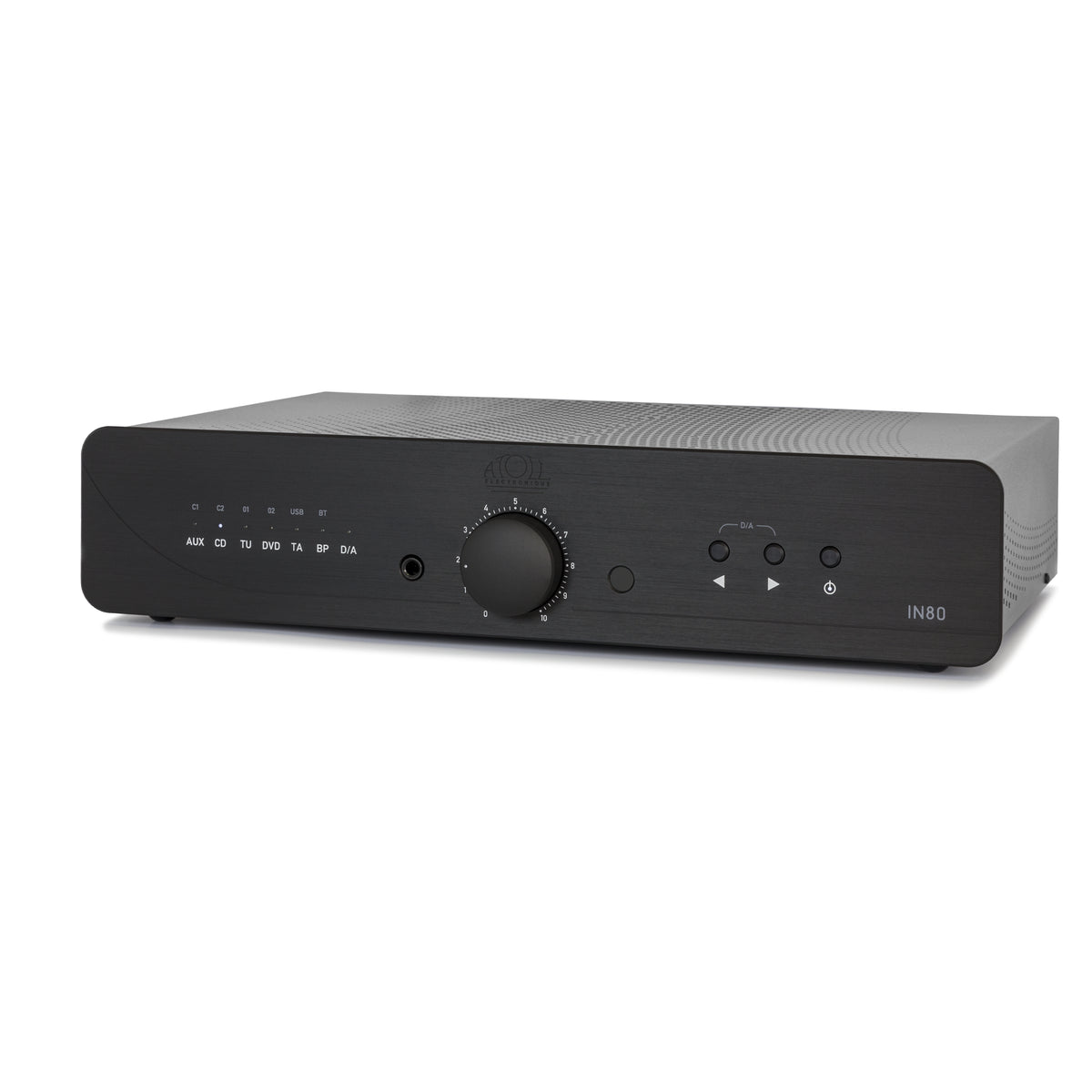

Atoll IN80 Signature Integrated Amplifier

Atoll IN 80 Signature Integrated Amplifier Details :

Atoll IN 80 Signature Amplifier/preamplifier Integrated 2x80Wrms/channel/8Ω

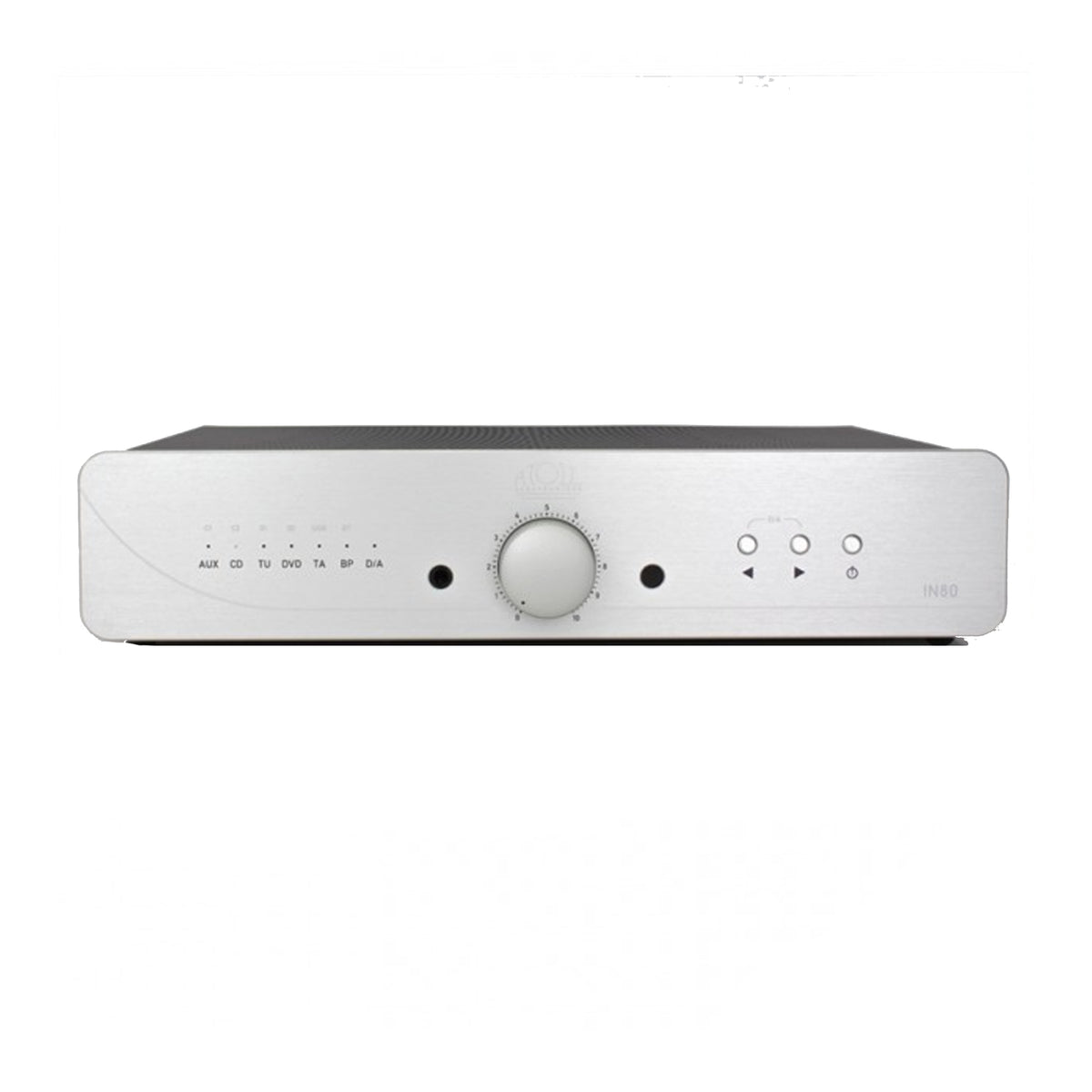

4mm aluminium brushed front panel with graved logo and “Wave”, 1,5mm steel chassis, aluminium knob and keys
Audio stages with discrete components, MKP technology link capacitors, high performances heatsinks

PCB with double layer nickel/gold, thermal protection
Toroidal Transformer of 340 VA
ALPS motorised potentiometer
Direct acces of inputs from the front panel or the remote control.

Atoll IN 80 Signature Integrated Amplifier Specifications :

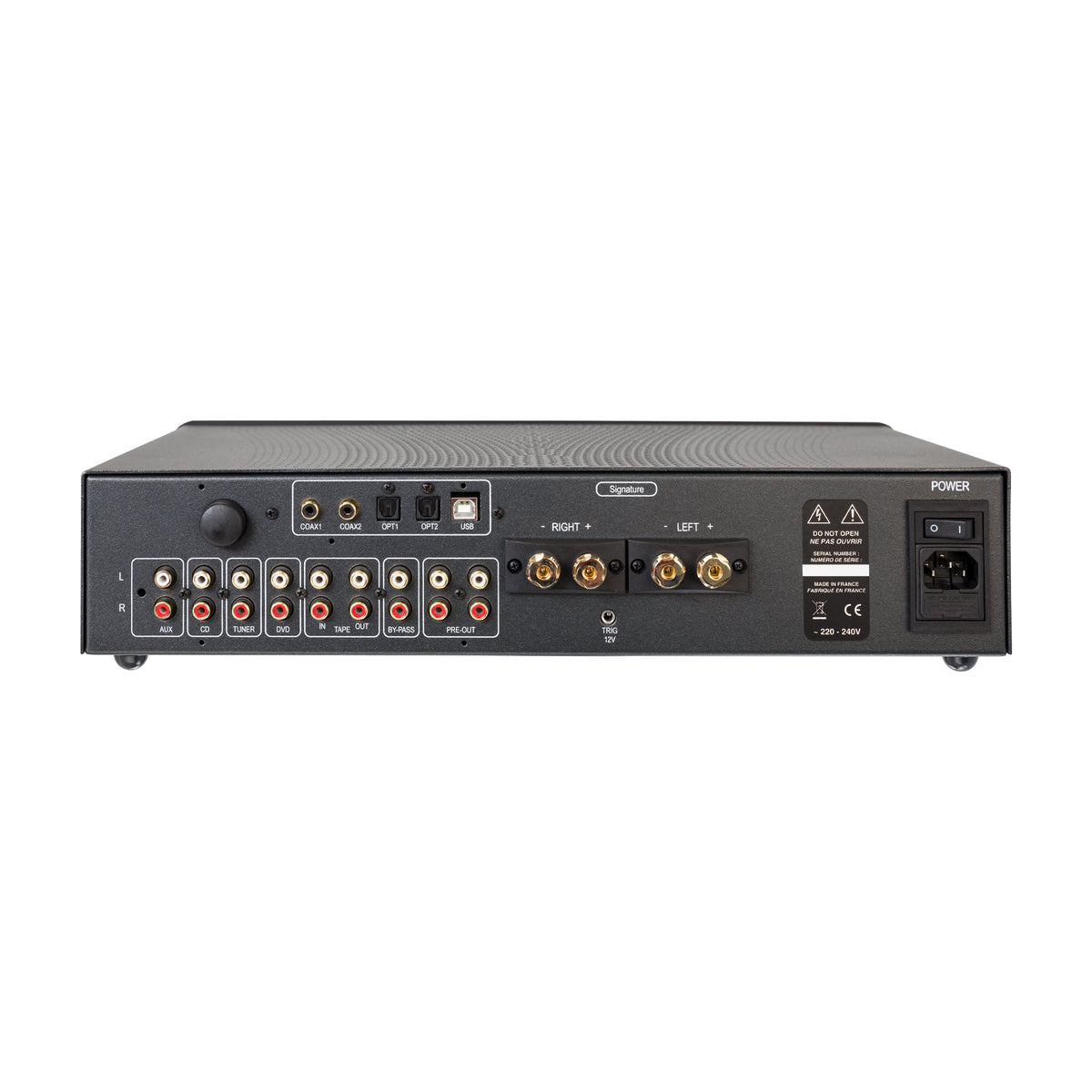

Connectings:

– 5 audio Inputs (RCA) :

• AUX ( or optional phono stage P50 or P100)
• CD
• TUNER
• TAPE (IN+OUT with monitoring loop)
• DVD

– 1 By-pass Input (using as power amplifier)
– 2 Pre-out Outputs (for bi-amp or to link to a subwoofer)
– 1 Headphones jack 6,35mm
– 1 trigger Output 12V

POSSIBLE OPTIONS:

This device can be equipped with different options:

1 Atoll original remote control.

1 Phono Board on AUX Input :

• P100 (set as MM or MC)
• P50 (MM)

1 Digital board :

– Digital Board Signature (same as IN200SIG)

• 1 Bluetooth receiver
• 2 Coaxial Inputs (24Bits/192kHz)
• 2 Optical Inputs (24Bits/192kHz)
• 1 USB-B Input: PCM & DSD
  Audio Converter: AKM – AK4490
  PCM from 16 bits to 32bits up to 384 kHz on USB-B input (asynchronous).
  DSD : DSD64 & DSD128.
  USB Interface: XMOS with specific program designed for ATOLL.
